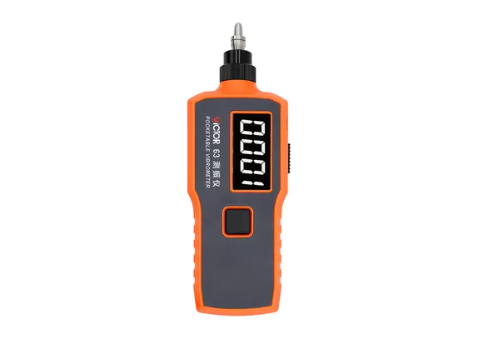

Measurement range: vibration displacement:0 ～1000μm(peak to peak)
velocity:0～71mm/s (RMS)
Frequency response and error:
Vibration displacement( P-P ):12～200Hz,≤±10%
Velocity( RMS ):12～500Hz,≤±10%
Linearity and Accuracy
Vibration displacement( P-P ):0～20μm,≤±10% ＞20μm, ≤±5%
Velocity: 0～2.0mm/s, ≤±10% ＞2.0mm/s, ≤±5%
Low voltage indication: When the battery voltage is below 6.5V, the screen will prompt low voltage, then you should replace the battery with a new one.
Environmental
Environment temperature : 0 ～ 40 ℃
Relative humidity: ≤ 80%
Atmospheric pressure : 75 ～ 106kpa
Overall dimensions:185(H)×68(W)×30(D)mm
Weight: 480g(including battery)
