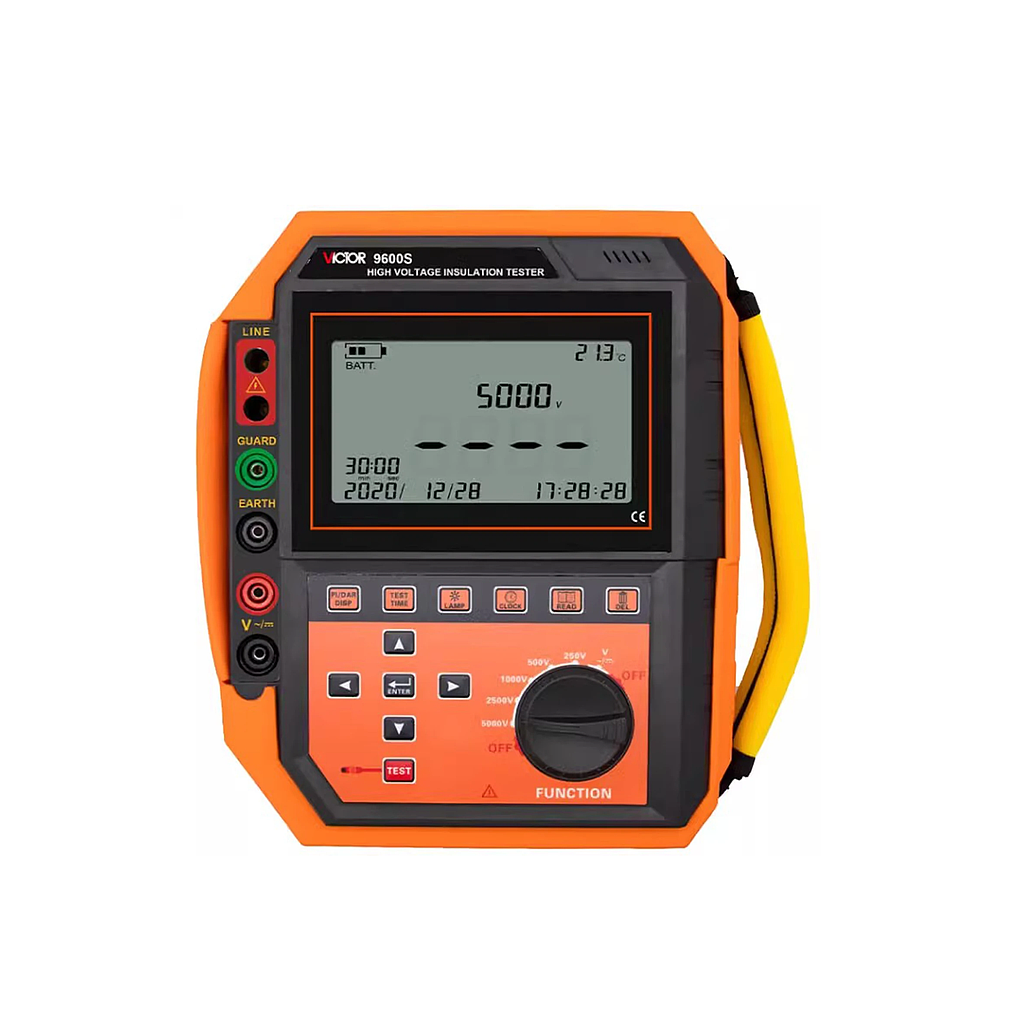

VICTOR 9600S Insulation Resistance Tester (0.01MΩ ~ 5TΩ, 5000V)

Display Type: Digital Only

Measuring Range: 0.01MΩ~5TΩ

Testing Voltage: 250V, 500V, 1000V, 2500V, 5000V

Accuracy Class: 3%

Operating Temperature: 0℃~40℃

Dimensions: 258mmx215mmx 83mm

Resolution: 250V, 500V, 1000V, 2500V, 5000V

Output Short Circuit Current: ≥10mA

Power Supply: DC 14.8V 2200mAh rechargeable lithium battery

Pressure resistance: AC 3700V/rms (between the front and rear ends of the housing)

Electromagnetic properties: IEC61326(EMC)

N.W Weight: Meter: 2.19kg (including battery)

Toolkit: Yellow and black two-color tool bag, easy to carry, good visual effect

Protection level: Close the lid IP65, open the lid IP40
