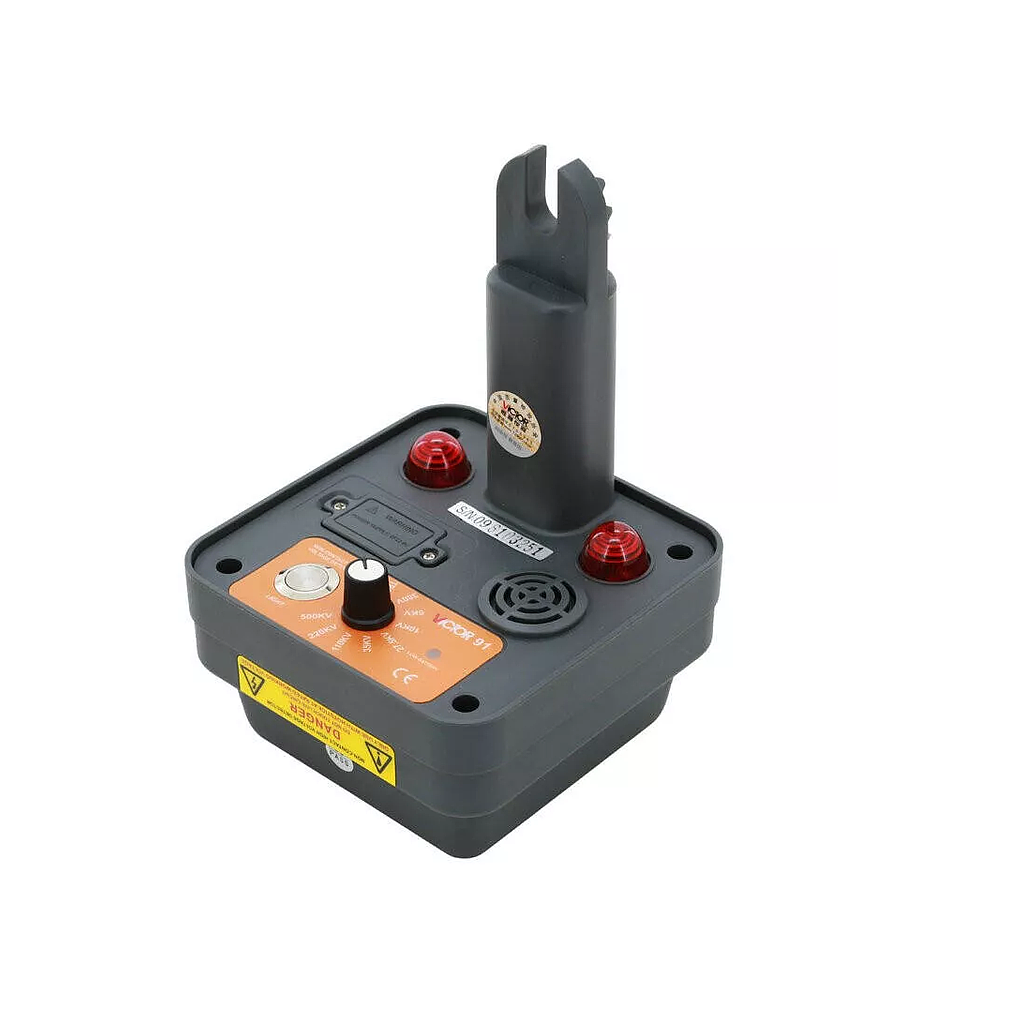

VICTOR 91 High-voltage Detector (380V~500KV)

Features: Voltage detection, cable tracking

Base condition: 23℃±5℃, below 75%rh

Test voltage: 380V; 6KV; 10KV; 27.5KV; 35KV; 110KV; 220KV; 500KV

Measurement method: Inductive measurement

Change files: Manual shift

Wire position: The wire to be measured is facing the side of the instrument with the illuminating lamp

Sealing grade: IP65

Prompt function: Sound and light prompts when the detection voltage exceeds the set voltage of the gear

Power consumption: Max: 65mA

Working temperature and humidity: (-10～+50)℃,＜85%RH

Storage temperature and humidity: (-15～+55)℃,＜90%RH

Low battery prompt: Have. When the power is low, the instrument emits a low-power light prompt

Battery voltage: When the battery voltage drops to about 5.5V, a low battery voltage signal prompts to remind you to replace the battery

Suitable for safety regulations: EN 61326-1 CISPR 11, EN 61000-4-2 EN 61000-4-3, EN 61000-4-8

General characteristics

Power supply: DC 9V (a 6F22 battery)

Body weight: 365g (including battery)

Dimensions: 115mm (length)×115mm (width)×169mm (height)
