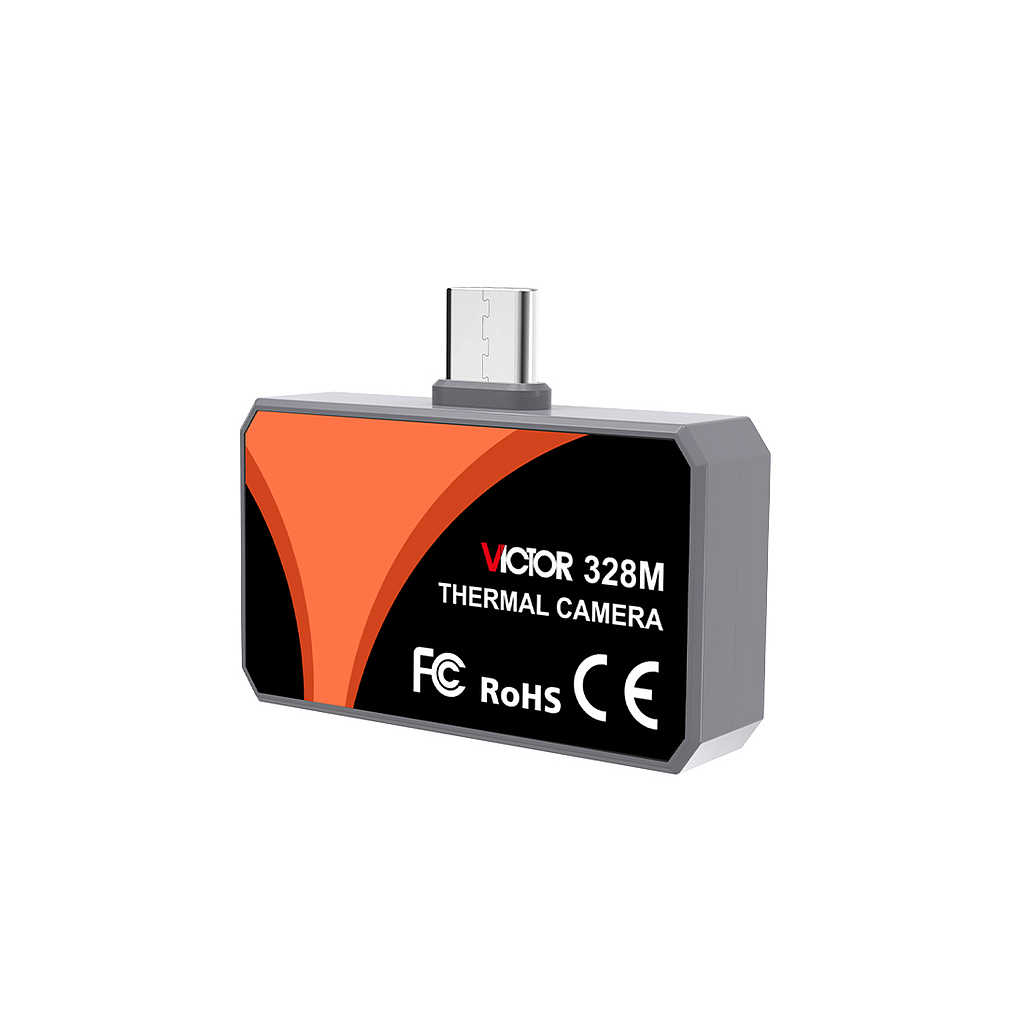

Infrared Thermal Imaging
Detector type: Uncooled vanadium oxide (VOx) microbolometer
Infrared resolution: 96 × 96
Pixel pitch: 12 μm
Focal length: 1.35 mm
Focus mode: Fixed focus
Field of view (FOV): 50° × 50°
Spatial resolution (IFOV): 8.89 mrad
Spectral range: 8–14 μm
NETD: ≤60 mK @ 25°C
Frame rate: 25 Hz
Temperature measurement range (Normal): −20°C to 150°C
Temperature measurement range (Auto): −20°C to 550°C
Temperature measurement range (High): 100°C to 550°C
Temperature measurement accuracy: ±2°C or ±2% of reading
Measurement distance: 0.3–3 m
Measurement mode: Industrial temperature measurement
Temperature display: Center point, maximum temperature, minimum temperature
Basic Parameters
Operating temperature: −10°C to 50°C
Storage temperature: −20°C to 60°C
Data interface: Type-C
Device weight: Approx. 20 g
Device dimensions: 44 × 26 × 12 mm
