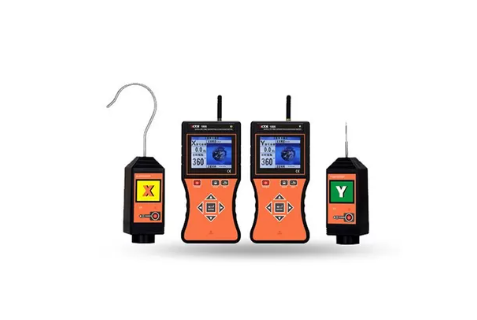

VICTOR 1800 Electric Power Tester

Function:Wireless high voltage-satellite timing-phase detecting, frequency, phase, phase sequence, and electricity inspection.

Power:DC 3.7V rechargeable Li-battery, USB charge port, continually working 10h

Phase detecting:Satellite second pulse precision mode, satellite timing mode, common mode

Transmission mode:315MHz,433MHz wireless transfer

Distance of phase detecting

Satellite timing phase detector distance up to 500km

Common phase detector: 160m

Display mode:3.5 LCD display

Range:

Rank of phase detecting:AC 10V～550kV

Phase degree:0°～360°Frequency:45Hz～75Hz

Resolution:1°；0.1Hz

Accuracy (23℃±5℃,80%RH below)

Satellite phase Detector degree tolerance:≤±5°

Common detector tolerance:≤±10°

Frequency tolerance:≤±2Hz

Phase judgement

Same phase: XY receiver detected phase degree variance at range of 0°～30° ；

Heterogenous phase: XY receiver detected phase degree at range of 90°～120° or 210°～270°

Phonetic function:Voice report: Same phase, Heterogenous phase, normal X signal,normal Y signal

Satellite Timing validity:Once the satellite timing successfully, validity time over 30mins to meet the underground phase detecting.

Insulation rod length:Stretched length 5m；carrying on length 1m

Method of phase detecting

Non-contact:35kV above bare wire or 110kV above.(testing with insulation rod)

Voice indication:The sound of the probe "Du - Du - Du" buzz

Mode switch:Automatic shift

Sampling speed:2times/sec

Connecting satellite time:After turning on detector, 1st search satellite takes 3min about, 2nd search satellite takes 30sec, The follow-up heat starts searching satellite time about 1 second, detector positive set up and keep level of heaven

Timing accuracy:Less 30nS

Instrument size

Detector: LxWxT 145mm×60mm×48mm

Receiver:LxWxT 250mm×100mm×40mm

Background brightness adjust:press ↑ ↓ adjust background brightness

Induction strength control:According to the different electric field of induction, the detector can automatically control magnification and facilitate the detecting phase in dense wire area.

Hold data:1st Press HOLD to save date,2nd cancel date

Quit:Press ESC button return interface

Data lookup:Press ENTER look up data, press ↑↓ review

Symbol of satellite searching:Dynamic display “----”symbol at period of search satellite

Automatically power off:Standby 30min, then power off automatically for power saving

Rated current

Detector:35mA max；

Receiver:300mA max

Batter voltage:The detector low battery symbol display when voltage lower 3.2V, remind of charge battery

Instrument weight

Detector:205g(contains battery)

Receiver:395g(contains battery)

Insulation rod:1.45kg

Total weight:12.6kg(contains meter box)

Working humiture:-10℃～40℃；80%Rh below

Storage humiture:-10℃～60℃；70%Rh below

interfere:No interfere except especially Strong magnetic field, no interfere except same frequency 433MHz,315MHz

Insulation strength

Insulation rod:AC 110kV/rms(5sections after stretched)

detector:2000V/rms( rod connection ends to detector top)

receiver:2000V/rms(outer shell two ends )

Structure:Anti leak type II,IP63

Proper Standard

GB13398 92, GB311.1 - 311.6 - 8, 3DL408 91 standard and national new electric power industry standard "DL/T971-2005 for universal technical conditions for portable 1kV to 35kV portable phase detector apparatus for live work"

Ideal for IEC61481－A2:2004；IEC 61243－1 ed.2:2003 standard
