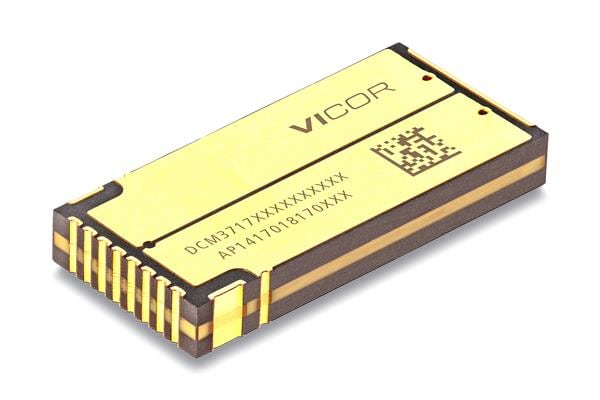

Vicor DCM3717S60D13K0TN1 Non-Isolated / PoL 1000W 40-60Vin 12.2Vout 82A

Width: 17.3 mm (0.681 in)

Height: 5.2 mm (0.205 in)

Length: 36.7 mm (1.445 in)

Industry: Industrial

Dimensions: 36.7 mm x 17.3 mm x 5.2 mm

Output Type: Fixed

Output Power: 1 kW

Input Voltage: 40 VDC to 60 VDC

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 60 V

Input Voltage - Min: 40 V

Input Voltage, Nominal: 54 V

Output Current-Channel 1: 82 A

Output Voltage-Channel 1: 12.2 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
