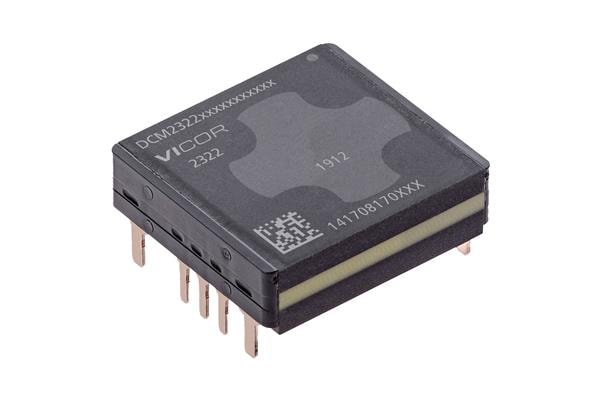

Vicor DCM2322TA5N31A2T60 Isolated 120W 43-154Vin 28Vout T-grade

Width: 22.8 mm (0.898 in)

Height: 7.21 mm (0.284 in)

Length: 24.84 mm (0.978 in)

Industry: Industrial

Unit Weight: 15 g

Output Power: 120 W

REACH - SVHC: Details

Input Voltage: 43 V to 154 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 154 V

Input Voltage - Min: 43 V

Input Voltage, Nominal: 100 V

Output Current-Channel 1: 4.3 A

Output Voltage-Channel 1: 28 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
