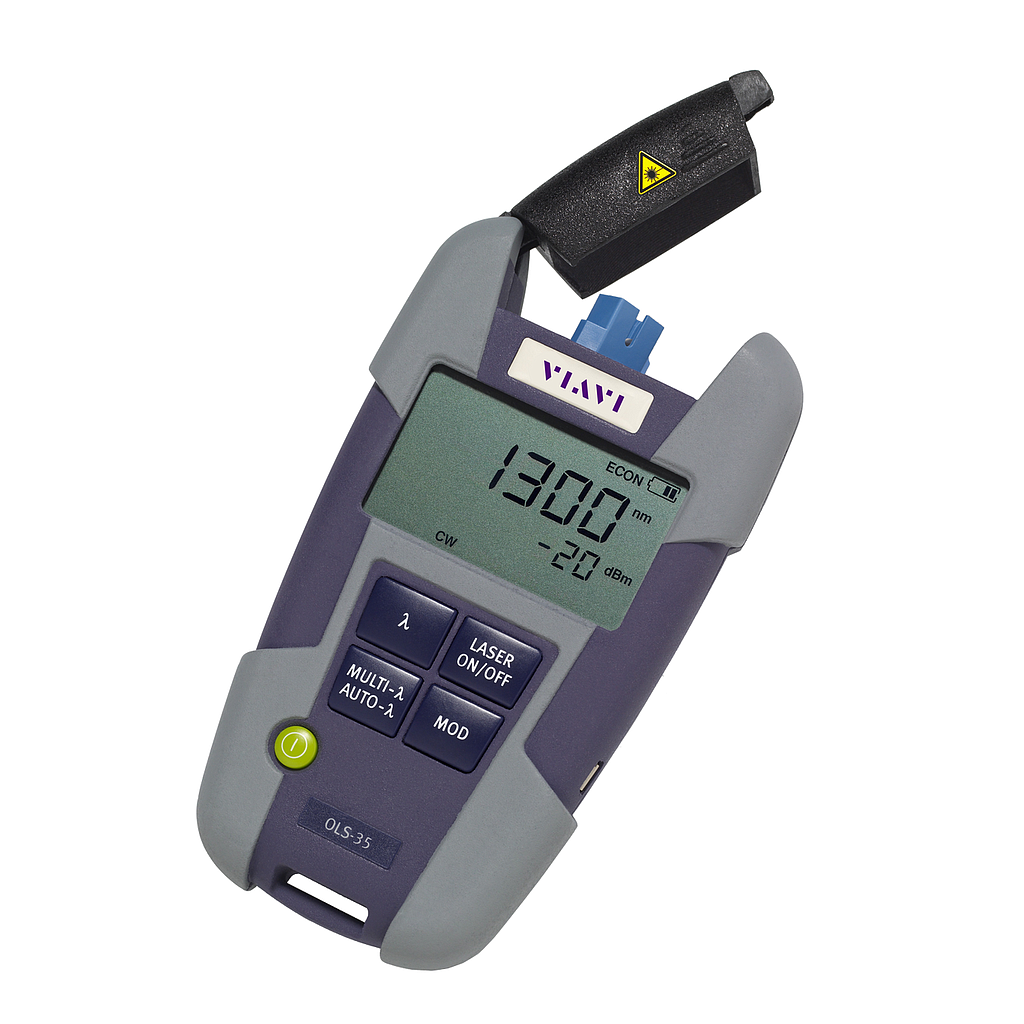

Viavi OLS-35 Optical Light Sources

Source type: Laser

Laser safety: IEC 60825-1: 2007

Fiber type: SM (9/125 μm)

Optical interface type: PC/1 single port for all wavelengths

Optical interface connectors: Fixed LC; Switchable SC, FC, ST, LC

Central wavelength: 1310 nm (±20 nm); 1550 nm (±20 nm)

Spectral width: <5 nm

Output power: –7 dBm

Stability short term (15 min): ±0.02 dB

Stability long term (8h): ±0.05 dB

Tone generation: 270 Hz, 1 kHz, 2 kHz

Auto λ mode: Yes

Multi λ mode: Yes (2 or 3 λs)

Power Supply

Dry batteries: 2 AA 1.5 V

Rechargeable batteries: 2 AA NiMH 1.2 V

AC operation: Via micro USB and SNT-505

Dimensions (H x W x D): 30 x 80 x 150 mm/1.2 x 3.1 x 5.9 in

Weight: 200 g/0.45 lb

Datasheet
