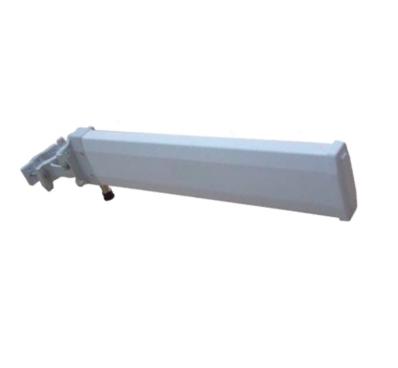

Viavi G700050363 RF Yagi Antenna (1750 ~ 2390 MHz)

Mechanical Data:

Dimension: 200 × 200 × 603 mm (7.87 × 7.87 × 23.74 in)

Weight: ≤ 2 kg (including bracket)

Radome Material: ASA

Connector Type: N jack (female)

Withstand Wind Pressure: 60 m/sec

Mechanical Tilt: ±30° (Up, Down) / ±30° (Left, Right)

Environmental Data:

Operating Temperature: –40 to +70 °C

Electrical Data:

Frequency Range: 1750 to 2390 MHz

Polarization: Vertical

Bandwidth: 640 MHz

Gain: ≥ 13 dBi

Beam Width: 45° ± 5° (Horizontal) / 40° ± 5° (Vertical)

VSWR: < 1.4:1

Impedance: 50 Ω

Maximum Power: 50 W
