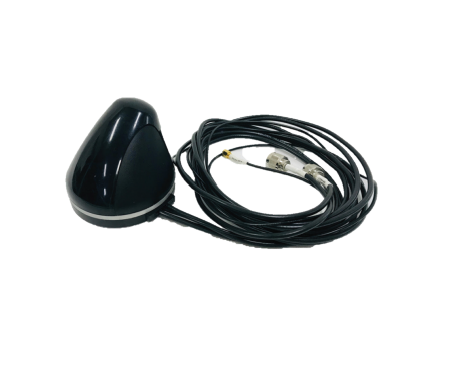

Viavi G700050358 Mag Mount Omni Antenna (694 ~ 6000 MHz)

Mechanical Data:

Dimension: 107 × 107 × 93 mm (4.20 × 4.20 × 3.67 in)

Radome Material: Black ASA UV Inhibitive

Cable: RG-174, 8 ft. (GPS DC 3V and 5V); RF-195, 8 ft. (694-960/1710-3700 MHz); RF-195, 8 ft. (2.4 to 2.485 and 4.9 to 6.0 GHz)

Connector: RF: Type N plug (male); GPS: SMA plug (male)

Environmental Data:

Operating Temperature: –40 to +80 °C

Shock and Vibration: IEEE1478, EN 61373, MIL-810G, TIA 329.2-C

Dust and Water Ingress: IP67

Electrical Data:

Frequency Range: RF: 694–960 MHz, 1710–3700 MHz, 2400 MHz, and 4900–6000 MHz; GPS: 1575.42 ± 2 MHz

Gain: 3 dBi (694–960 MHz), 4 dBi (1710–3700 MHz), 5 dBi (2.4–2.485 and 4.9–6.0 GHz); GPS Unit Gain: 26 dB, 5 dBi antenna

Voltage: 3.3 and 5 V DC

Current: 10 mA typical, 20 mA max.

VSWR: < 2.0:1

Impedance: 50 Ω nominal

Maximum Power: 10 W
