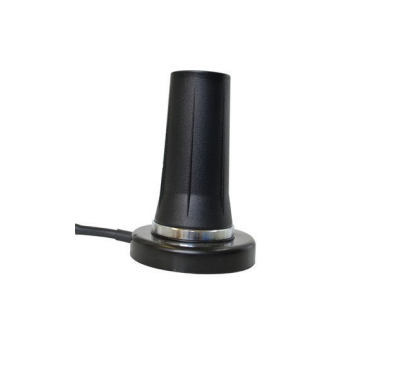

Viavi G700050345 Mag Mount RF Omni Antenna (617-960/1700-6000 MHz)

Mechanical Data:

Dimension: 1.7” diameter × 3 5/8” high (43 mm × 92 mm)

Mag base diameter: 2 5/8” (67 mm)

Radome Material: Black ABS Plastic

Cable: 8 ft. LL-195

Connector: N plug (male)

Environmental Data:

Operating Temperature: –40 to +80 °C

Shock and Vibration: IEEE1475, EN 61373, MIL-STD-810G

Dust and Water Ingress: IPX5

Electrical Data:

Frequency Range: 617–960 / 1700–6000 MHz

Peak Gain: 3 dBi

VSWR: 2.0:1

Impedance: 50 Ω nominal

Maximum Power: 10 W
