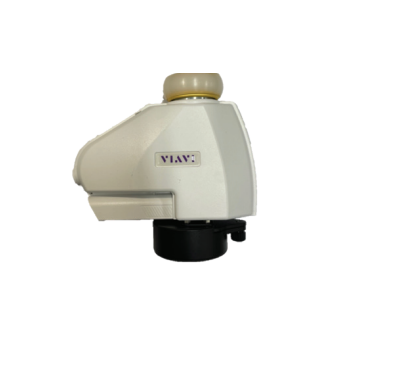

Viavi G700050342 Mag Mount Omni Antenna (24 ~40 GHz, 18 dBi)

Mechanical Data:

Dimension: With the housing: 54.0 × 137.3 × 125.5 mm (2.13 × 5.41 × 4.94 in)

Weight: 340 g (11.99 oz) without the USB cabling and housing

Radome Material: HDPE

Connector 1: K jack (female)

Connector 2: USB Type C with locking screw

Environmental Data:

Operating Temperature: –20 to +65 °C

Electrical Data:

Frequency Range: 24000 to 40000 MHz

Gain: 18 dBi typical (3 dBi from the antenna and 15 dBi from the integrated LNA)

Azimuth Gain Variation: ±1 dB

Azimuth Beam Width: 360°

3 dB Vertical Beam Width: 45°

P1dB: 11 dBm

Return Loss: 10 dB

RF Input Power: –8 dBm maximum

Damage RF Input Power: –3 dBm maximum

Supply Voltage: 4.8 V DC minimum, 5 V DC typical, 20 V DC maximum

Supply Current: 150 mA typical
