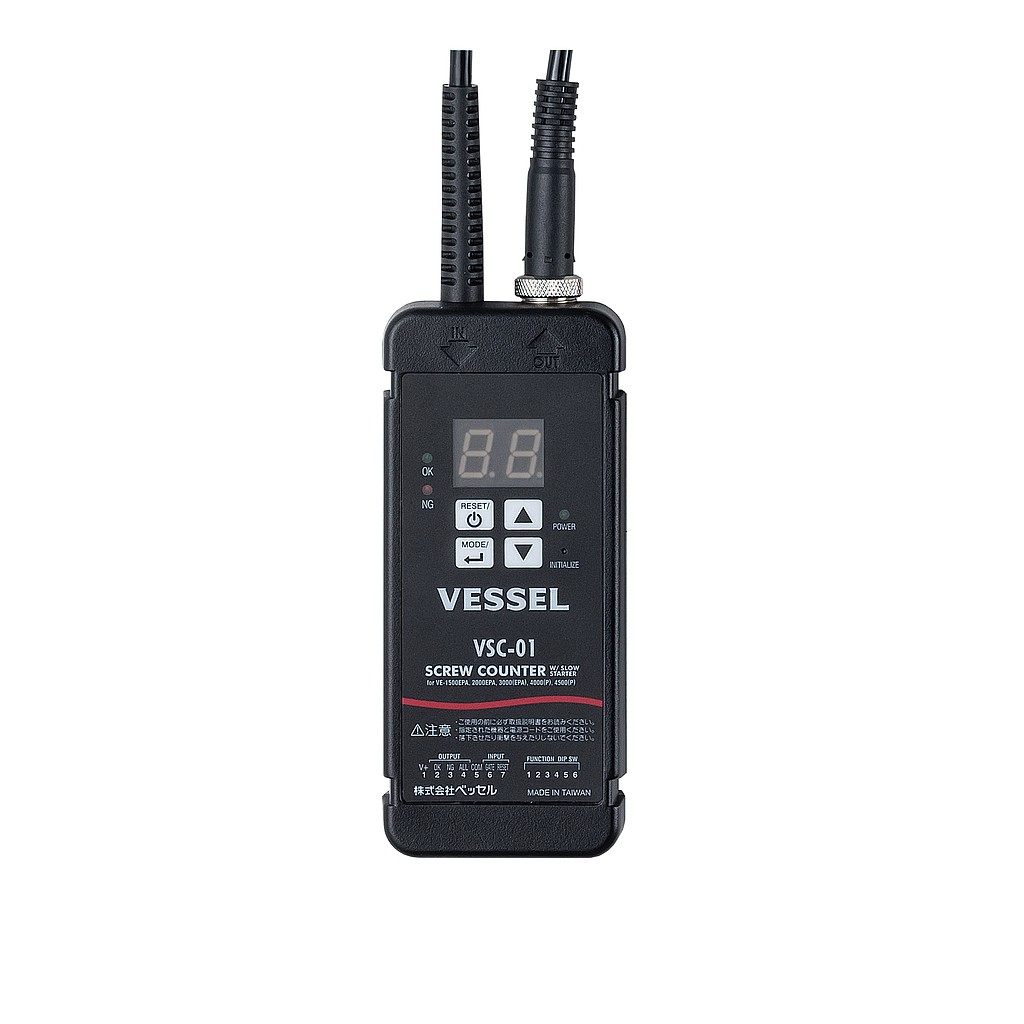

Vessel VSC-01 Screw Counter

Output:

VCT-20: HI:DC12V, LO:DC9V

VCT-30: HI:DC32V, LO:DC24V

VCT-45: HI:DC32V, LO:DC24V

Channel: 5 channels

Count number: 1-99

Count method: Count up/count down （selective）

Automatic reset time: 0.0-9.9 seconds

Slow start setting time: 0.0-9.9 seconds

Speed during slow start" 30, 35, 40, 45, 50, 60, 70, 80, 85% (10 steps)

Screw tightening time: 0.01-9.90 seconds

Connector: Dedicated connector （open collector 7 contacts）

Dimensions: 150x65x32 mm

Weight: 180 g

Working temperature/humidity: 0～40°　10～80%RH

Compatible models: VE-1500EPA, VE-2000EPA, VE-3000, VE-4000, VE-4000P, VE-4500, VE-4500P
