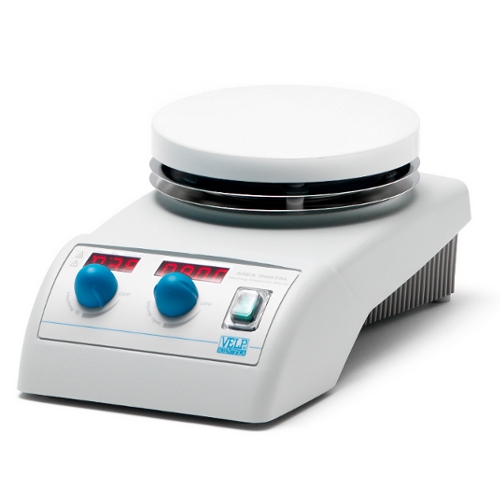

VELP AREX Digital Aluminum Hot Plate Stirrer

Construction material:epoxy painted aluminium structure

Heating plate:aluminum alloy coated with ceramic coating

Heating plate diameter:155 mm

Digital display:one for speed, one for temperature

Pt100 connection:provided, both for AREX Digital and AREX Digital PRO

Vertex connection:provided, only for AREX Digital PRO

Protection rating CEI EN 60529:IP 42

Power:630 W

Weight:2.6 Kg (5.7 lb)

Dimensions (WxHxD):165x115x280 mm (6.5x4.5x11 in)

PERFORMANCE

Electronic speed regulation:up to 1500 rpm

Counter-reaction:constant speed

Electronic temperature regulation:from room temp. to 370°C

Maximum safety temperature digitally settable:temperature limit can be set between 50 and 370 °C

Overtemperature safety circuit

"Hot Plate Warning"whenever the top plate temperature is over 50 °C

Sample thermoregulation:± 0.5 °C by using the Vertex thermoregulator (AREX Digital PRO);

± 1.0 °C by using Pt100

Stirring volume (H2O):up to 20 liters
