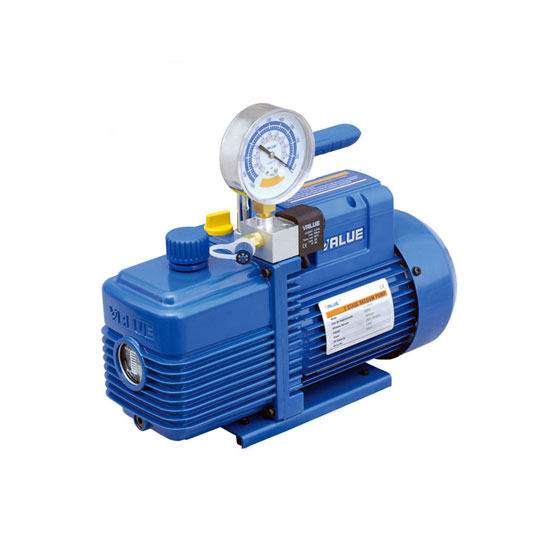

Value V-i280SV Vacuum pump (198 l/min; 7 CFM)

Flow: 198 l/min; 7 CFM

Vacuum Level (Partial / Total): 0.2 Pa / 15 microns

Motor Power: 0.74 kW (1 HP)

Compression Stages: 2

Power Supply: 230 V

Frequency: 50 - 60 Hz

Power Cord Length: 200 cm

Motor Speed at 50 Hz: 1400 rpm

Noise Level: 65 dB

Inlet Connection: 1/4" SAE

Oil Capacity: 0.5 l

Oil Type: mineral, viscosity: 46 mm²/s

Dimensions: 395 × 145 × 318 mm

Weight: 17.0 kg

Protection Class: IP44

Operating Temperature: 5 - 40°C

Storage Temperature: -20 - 60°C

Minimum Oil Temperature for Startup: 5°C

Shut-Off Valve: yes

Exhaust Plug Thread: M33 × 1.5 mm

Vacuum Gauge: external

Vacuum Gauge Size: 80 mm

Vacuum Gauge Accuracy: class 1.6

Vacuum Gauge Units: psi / MPa / mbar
