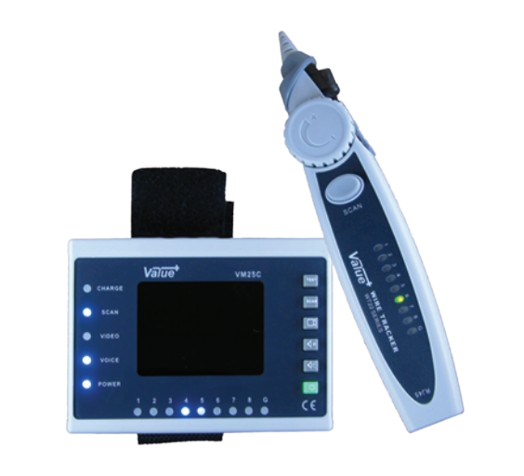

Value+ VM25C Portable CCTV Tester

Display:

Type: TFT

Size: 2.4"

Resolution: 320 x 240

Video Input: 1.0Vp-p

Power Output: DC12V 0.5A

Video Signal Input:

Type: NTSC/PAL

Automatically identifying: Yes

Tracking network or phone cable in bundle of wires: Yes

Checking the correctness of wire connections: Yes

PTZ Control: -

PTZ Address Scanning: -

Color Bar Output: -

RS-485 Signal Monitoring: -

Tracking signal transmission distance: 1km

Low Voltage Indicator: Yes

Charging Indicator: Yes

Charging Protection: Yes

Sound on/off selectable (Volume adjustment): Yes

Flashlight: Yes

Auto Power Off: Yes

Power by: Transmitter: 3.7V Rechargable Lithium (14500)x 3; Receiver (if any): 9V (6F22)
