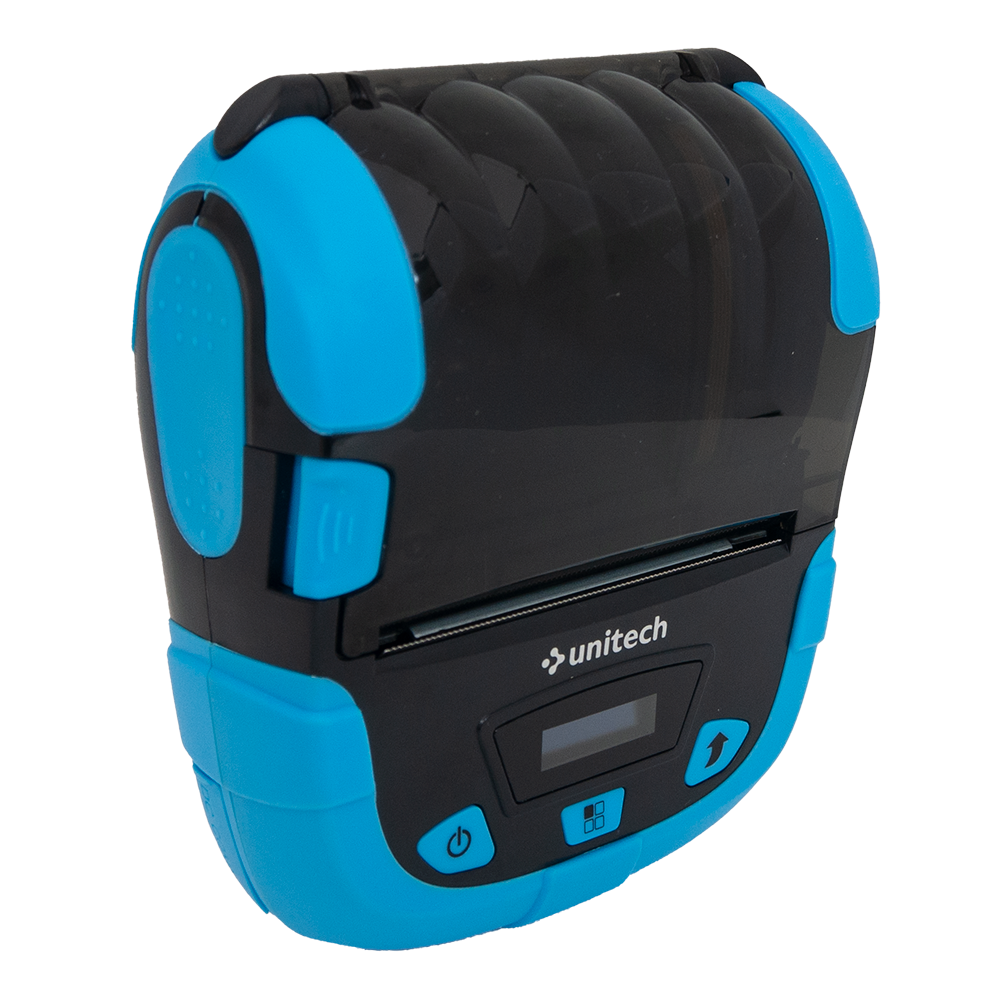

Unitech SP320 Bluetooth Mobile Printer (203dpi (8 dots/mm); 90mm/sec; 3 inches/72mm)

Printer mode: Direct thermal

Max. printer width: 3” / 72mm

Max. printer speed: 90mm per sec

Resolution: 203dpi (8 dots / mm)

Memory: RAM 8MB; Flash 4MB

Printer core live: 50km for thermal label; 150km for thermal paper/ receipt (25% print density or the following) / Each point: 1.5 million pulses

Programming languages: ESC/POS, CPCL (compatibility)

Windows: XP, Win7, Win8, Win10 (via USB)

Android: Supports Google standard SDK, API interface invocation

iOS: Supports iOS system & supply iOS SDK

Display: OLED screen

Button: Power, Setting, Feed, Uncover Button

1D barcode: Support UPC-A, UPC-E, EAN-13, EAN-8, Code39, ITF, CodeBar, Code 93, Code 128, I2/5

2D barcode: Support QR CODE, PDF417, DataMatrix

Languages: English, Chinese, Turkish, Arabic, and other multi-language characters, numbers, graphics, curves, pre-storage icon

Main battery: 19.98Wh (2700mAh); 7.4V rechargeable Li-iON battery

Media width: 22mm~80mm

Max. media roll size: 50mm

Media type: Thermal Labels, Thermal paper

Detection: Black mark, gap, sucessive paper

Print code: GBK, BIG5, Unicode (UTF8)

Fonts: ASCII font (8x16,12x24,16x32), GBK (16x16,24x24,32x32), BIG5 (16x16,32x32)

Bluetooth® 5.0

USB 2.0 Type C

Enclosure

Dimensions ( W x H x D ): 140 mm x 117 mm x 60 mm

Weight: 450g

Operating temperature: 0°C to +45°C

Storage temperature: -10°C to +60°C

Relative Humidity

Storage: 10% ~ 90% (non-condensing)

Operating: 20% ~ 85% (non-condensing)
