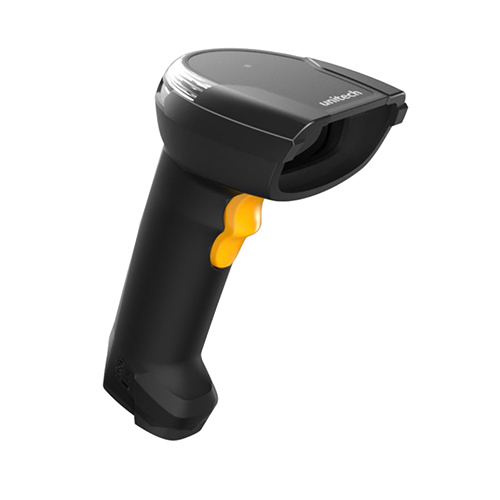

Unitech MS852 plus High Performance 2D Imager Scanner (1D : 3 mil / 2D : 6.7 mil)

Sensor: Global shutter 1280 X 800

Aiming Element: Red laser beam

Illumination: White LED (Risk Group Exempt)

Pitch Angle: ±60°

Roll Angle: 0 - 360°

Optical Resolution: 1D: 3 mil / 2D: 6.7 mil

Depth of Field (DOF PCS=80%)

Symbology / X-DIM Typical Range* Near Far

13 mil UPC 1.34 in / 3.4 cm 22.5 in / 57.3 cm

5 mil Code 39 2.76 in / 7 cm 11.85 in / 30.1 cm

10 mil Code 39 1.14 in / 2.9 cm 20.3 in / 51.7 cm

20 mil Code 39 1.38 in / 3.5 cm 31.5 in / 80 cm

15 mil Code 128 1.34 in / 3.4 cm 25.6 in / 65 cm

10 mil DM 2.84 in / 7.2 cm 11.7 in / 29.7 cm

6.7 mil PDF417 3.3 in / 8.4 cm 9.6 in / 24.4 cm

15 mil QR Code 1.3 in / 3.3 cm 15.35 in / 39 cm

Communication: Wired

Supported Host Interface: USB / RS232

Dimensions: 87.8 L x 71.6 W x 177.7 H (mm)

Weight: 147g without cable

Trigger Switch Lifetime: 10 million times

Barcode: 1D, 2D, and OCR

Operating Voltage: 4 VDC to 5.5 VDC

Current Consumption: Operating: 252mA / Standby: 77mA

Indicators: Beeper, LED

ESD Protection: Functional after 8K Contact and 15K Air

Mechanical Shock: 2.1M on concrete (scanner only)

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -40°C to +70°C (-40°F to +158°F)

Protection Standard: IP42

Accessories (Optional):

■ Standard hands-free stand (Optional)

■ Auto-sensing hands-free stand (Optional)

Certifications: CE, FCC, BSMI, VCCI
