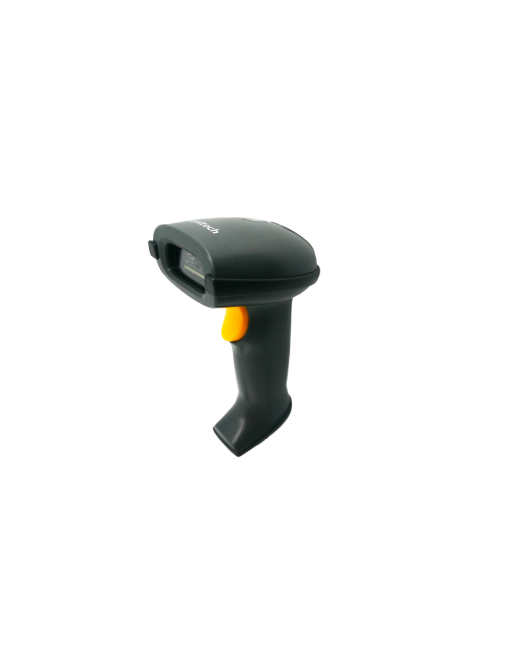

Unitech MS838 2D Barcode Scanner (60fps, CMOS 640 x 480)

Sensor: 640 X 480 CMOS

Aiming Element: Red LED

Illumination: White LED

Ambient Light: 0~100,000lux (natural light)

Scan Rate: 60fps

Skew Angle: ±60°

Pitch Angle Sensor: ±60°

Roll Angle: 0 - 360°

Optical Resolution: (1D)≥3mil

Depth of Field: 60-310mm (13 mil EAN13 PCS=90%)

Communication

Host Interface supported: USB / RS232

Mechanical

Dimension: 174mm × 72mm × 96mm (L x W x H)

Weight: 245g

Trigger Switch Life: 1 million times

Functionality

Operation Mode: Trigger Mode, Presentation Mode

Electrical

Current Consumption

Operation mode: <142mA

Standby mode: <42mA

Indicator: Buzzer, LED

Environmental

Mechanical Shock: 1.5m onto concrete

Operating Temperature: -10°C to 50°C

Storage Temperature: -20°C to 60°C

Relative Humidity: 5%-95% non-condensing

IP Rating: IP54

Package Contents

MS838 Scanner

Interface cable

Hands free stand (optional)
