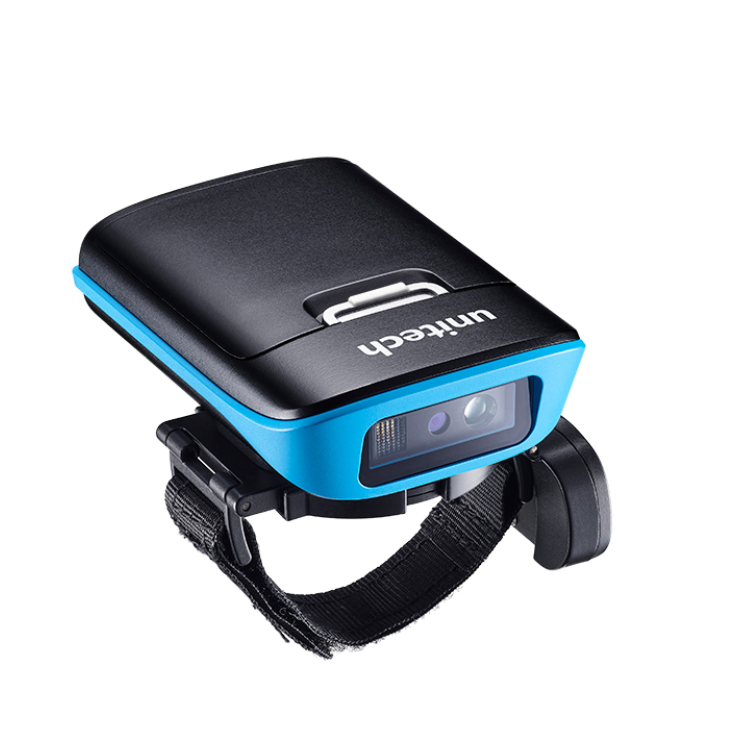

Unitech MS652 Wearable Ring Scanner

Connection: Connect to host with Windows, Android, or iOS

Memory: 7.5Mbytes, store up to 590,000 of EAN13 codes

Scan Engine: Zebra SE2707

Sensor: CMOS sensor with 640 x 400 pixel

Light Source: 1 Hyper Red 660nm LED

Ambient Light: Max 107, 639 lux (direct sunlight)

Skew Angle: 60 degrees

Range: 100M (line of sight)

Host Interface supported: USB

Dimension: 50 x 71 x 21 mm

Weight: 95g

Symbologies:

1D: All major symbologies and PDF417

2D: QR Code, Data Matrix, Aztec Code, PDF417, Macro PDF417, Micro PDF417, MaxiCode, Coda block A, Codablock F, GS1Composite, Han Xin Code, Australian Post, British Post, Canadian Pos, InfoMail, Intelligent Mail Bar Code, Japanese Post, KIX (Netherlands) Post, GS1 Composite, Korea Post, Planet Code, Postal, Postnet

Operation Voltage: DC 5V +/- 10%

Operating Temperature: -10°C to 50°C

Storage Temperature: -20°C to 60°C

Relative Humidity: 95% non-condensing

IP Rating: IP42

Accessories

Battery

Hand strap

Micro USB cable

4-Slot Battery Charger (optional)

Datasheet
