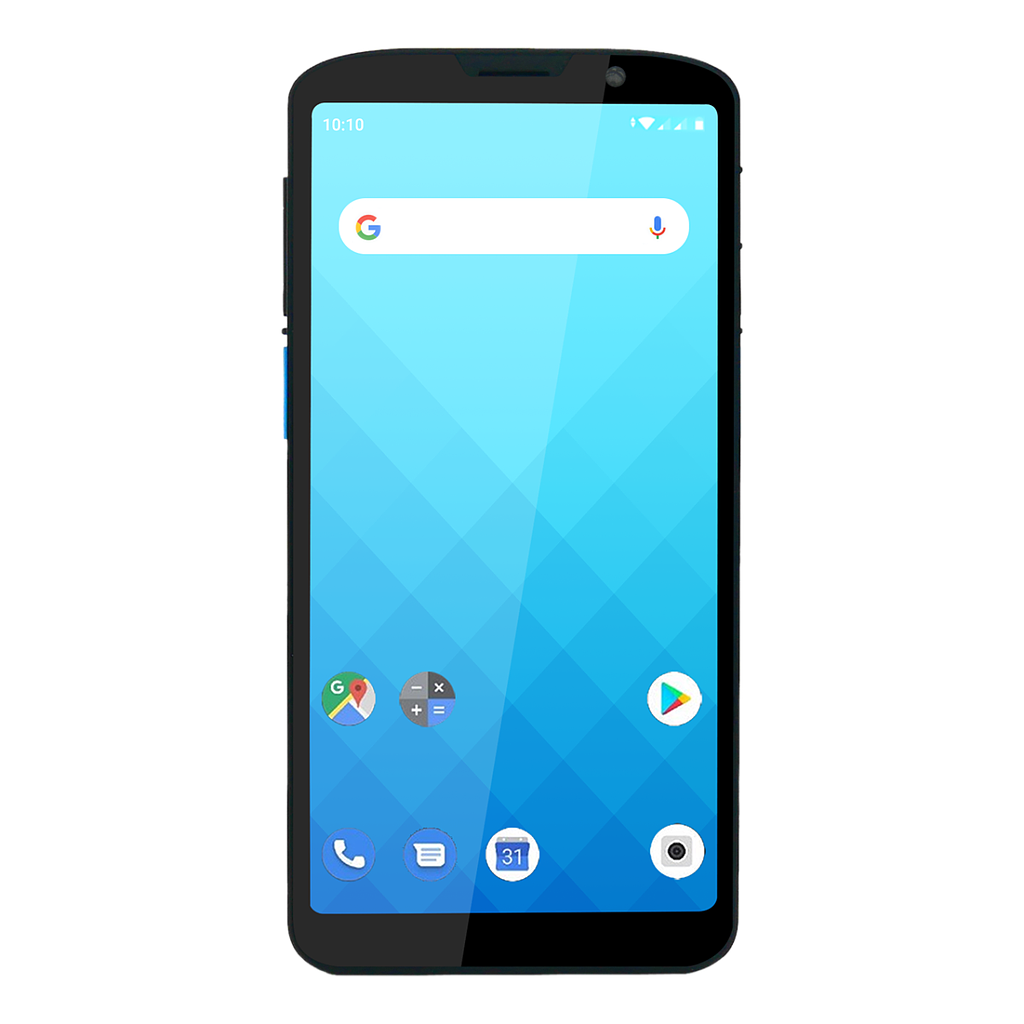

Unitech EA630 Plus Rugged Smartphone (Qualcomm® Snapdragon™ 662, 64-bit 2GHz Octa-core processor)

OS: Android 12

CPU: Qualcomm® Snapdragon™ 662, 64-bit 2GHz Octa-core processor

Memory: 4GB RAM / 64GB Flash

Display: 6-inch color screen, 18:9 Full-HD (2160x1080), up to 450 nits backlight

Touch Panel: Gorilla® Glass 5 with 5-point capacitive touch panel, compatible with gloves and wet-touch support

Buttons / Keypad: 5 keys - Programmable function key; dual dedicated scan buttons; volume up/down buttons; power button

Camera: 5 MP front camera, 16 MP rear camera with autofocus and flash

Barcode: Supports all 1D, 2D, and OCR codes

UHF RFID: UHF gun grip

USB: USB 3.1 (Type-C) with USB OTG support; Ethernet/USB-Host via cradle

SIM Slot: Dual nano-SIM slot

Expansion Slot: MicroSD, up to 256 GB

Audio: One speaker with SmartPA (95 dB @ 10 cm), one receiver, dual-microphone with noise cancellation support

Battery: 3.85V, 4000mAh Li-polymer battery; RTC Battery: 4-day backup

Bluetooth: Bluetooth® 5 support

WLAN: 802.11a/b/g/n/ac wireless LAN, 2.4GHz and 5GHz. Supports 802.11d/e/h/i/k/r/v, fast roaming. WEP, WPA, and IEEE 802.11i WPA2 compliant.

WWAN: 4G LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28 LTE (TDD): B38 /B39/B40/B41 3G WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900 MHz Dual nano-SIM slot

GPS: AGPS, GPS, GLONASS, Beidou, Galileo

Sensors: Gyroscope, Light Sensor, e-Compass, Proximity Sensor, Accelerometer

Dimensions (W x H x D): 76.4mm x 157mm x 13.9mm

Weight: 232g (with battery)

Durability: 1.2m drop resistance (1.5m with bumper)

Sealing: IP65

Operating Temperature: -10°C to 50°C

Storage Temperature: -30°C to 70°C (without battery)

Relative Humidity: 10% ~ 90% (non-condensing)

AI: 3rd Gen Qualcomm® AI Engine

HF RFID: Frequency 13.56Mhz HF/NFC; Support: ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092) compliant.

Accessories:

USB 3.0 Type-C Cable (Supports Fast Charging) (PN#1550-905908G)

Fast-Charge Adapter via USB Type-C Cable (PN#1010-900061G US plug / #1010-900062G EU plug)

Wrist Strap (PN#5400-900040G)

Boot Case (PN#3210-900023G)

9H Glass Screen Protector (PN#401546G / #5400-900037G, PN#384896G, 5.5 mm #386534G)

Coil Strap (PN#383642G)

Standard Gun Grip (PN#5500-900075G)

Standard Gun Grip for Terminal with Boot Case (PN#5500-900076G)

RG630 UHF Gun Grip (PN#5500-900092G (US), PN#5500-900093G (EU))

RG630 UHF Gun Grip for Terminal with Boot Case (PN#5500-900094G (US), PN#5500-900095G (EU))

Single-Slot Charging Cradle * (PN#5000-900072G)

Single-Slot USB Charging Cradle * (PN#5000-900070G)

Single-Slot Ethernet Cradle * (PN#5000-900071G)

Power Adapter with Plug for Single-Slot Cradle (PN#1010-900057G)

Vehicle Mount / Active Car Accessory Kit (PN#5000-63C0001G)

4-Slot Terminal Charging Cradle * (PN#5000-900075G (PSU + US Cord), PN#5000-900076G (PSU Only))

4-Slot Ethernet Cradle * (PN#5000-900077G (PSU + US Cord), PN#5000-900078G (PSU Only))

Power Supply for 4-Slot Cradle (PN#1010-900066G (US), PN#1010-900031G (EU))

3-Prong Power Cord (UK) PN#1550-602689G

3-Prong Power Cord (EU) PN#1550-602333G

3-Prong Power Cord (US) PN#1010-601551G

Mount Bracket for Wrist Strap (PN#5400-900051G)

RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP)) * Compatible with EA630 with or without boot case

5V / 3A Power Adapter (EU, UK, US, AU) (PN#1010-085001G)

Soft Belt Holster with Clip (EU Only) (PN#DT3669)

Hand Strap Mount (1 × strap + 2 × screws) (PN#386078G)

Mount Only (without screws) (PN#386239G)

Wrist Mount / Rotating Wrist Strap Holder 180° (EU Only) (Contact Unitech for Mobilis partner holster details)

Desk Mount 100–160 mm for Vehicle Mount (EU Only) (PN#CRM-11)

12-Slot Desktop Cradle for EA630 with Protective Boot (EU Only) (PN#5000-63C0003G)

Certifications: CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, N-Mark
