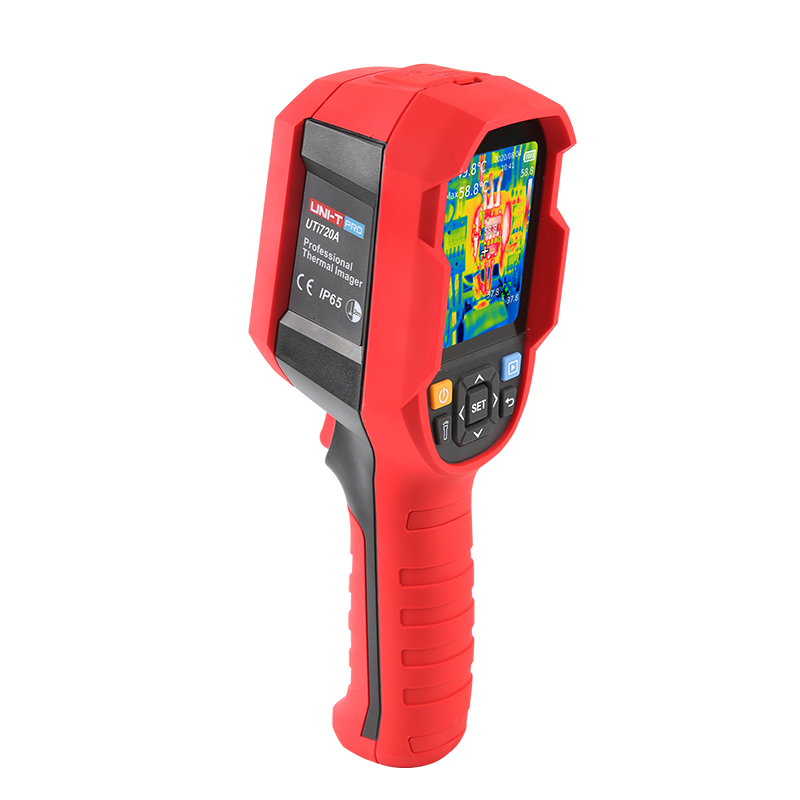

UNI-T UTi720A Heavy Duty thermal imager (256×192, -20℃~400℃, 56°×42.2°)

IR resolution (Pixels): 256x192

Display: 2.8" IPS (320x240)

Field of view(FOV): 56"x42.2°

Thermal sensitivity(NETD): ≤50mK

Spatial resolution (IFOV): 3.8mrad

Frame rate: ≤25Hz

Spectral range: 8~14µm

Focus: Focus free

Temperature measurement range: -20°C~400°C (-4°F~752°F)

Accuracy: ±2°C or ±2% whichever is greater

Emissivity: 0.01~1.00 adjustable (0.95 default)

Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)

Image modes: Thermal

On screen analyzer: 3 Points

Hi/Lo temperature alarm: Icon, LED flashlight

PC software analysis: Yes

Battery: Fixed Li-ion battery (3.6V 5000mAh)

Battery operating time: ≥ 7 hours

IP rating: IP65

Drop proof: 2m

Storage: up to 32GB SD card

Image/Video storage format: BMP

Certificates: CE, FCC, RoHS

Product net weight: 490g

Product size: 236mm×75.5mm×86mm

User Manual
