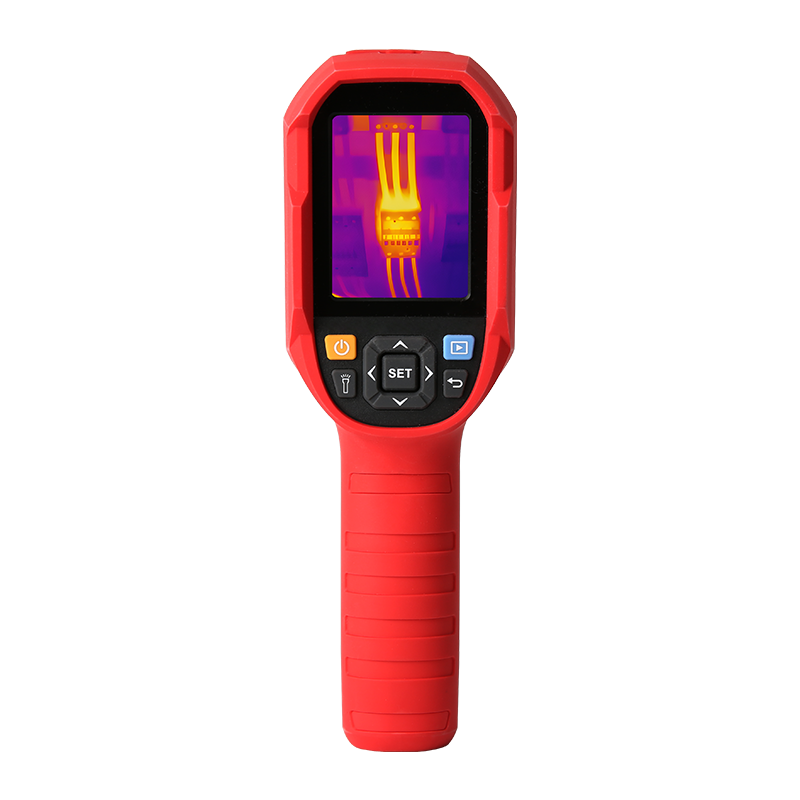

UNI-T UTi716B Heavy Duty Thermal Camera (-20℃~550℃; 160×120Pixels; 4.62mrad)

Technical Data

Display: 2.8” TFT (320×240)

IR resolution(Pixels): 160×120

Super resolution(Pixels): √ (320×240)

Spectral range: 8~14µm

Pixel size: 12µm

Frame rate: ≤25Hz

Thermal sensitivity(NETD): ≤50mK

Focus: Focus Free

Field of view(FOV): 40°(H) × 30°(V)

Spatial resolution(IFOV): 4.62mrad

Temperature measurement range:  -20℃~550℃

Accuracy: ±2℃ or ±2% whichever is greater

Functions

Color palette: White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC

Image mode: Thermal, Visual image, T-Mix fusion, PIP

On screen analyzer: 5 Points/3 Rectangles

HI/LO temperature alarm: LCD animation, LED flashlight, Buzzer

HI/LO temperature tracking: √

Digital camera resolution: 2MP

Video recording: √

Wi-Fi/Wi-Fi live streaming: √

LED lighting: √

Analysis software: PC+APP

General Characteristics

Battery: 5000mAh rechargeable Li-ion battery

Operating time: ≥8 hours

USB: Type-C

Storage: Built-in 32GB

Image/video storage format: JPG/MP4

Protection: IP65 & 2m drop proof

Certificates: CE, FCC, RoHS

Languages: EN, FR, DE, IT, ES, SV, PL, CZ

Weight: 600g

Dimension: 236mm×75.5mm×86mm

Packing Details

Standard accessories: Type-C USB cable, Quick Start Guide, Download Operation Guide

Standard individual packing: Gift box

Standard Qty per carton: 10pcs

Standard carton size: 500mm×315mm×295mm

Standard carton G.W.: 11.2kg
