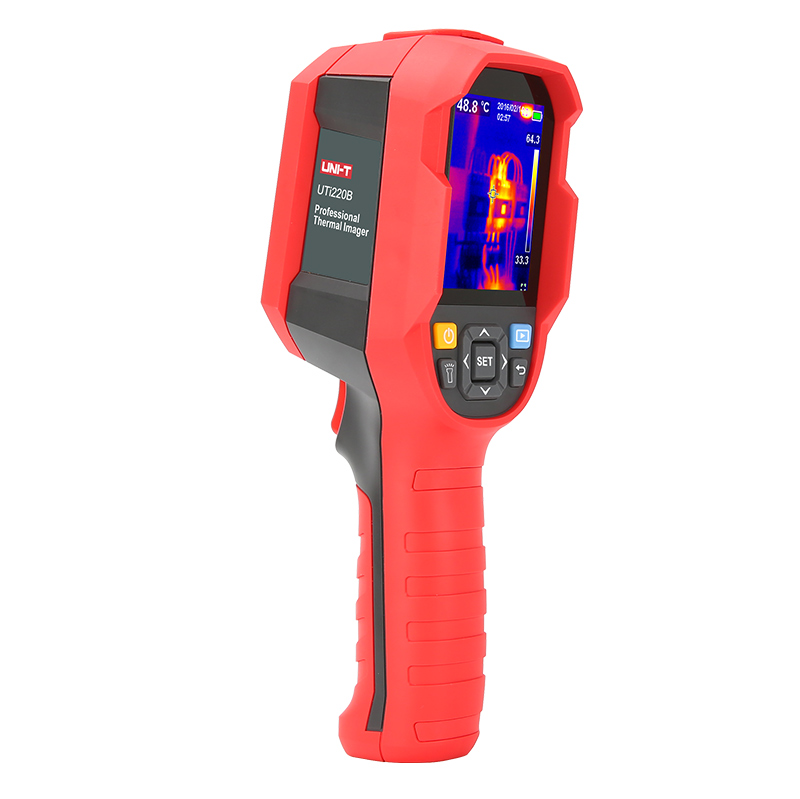

UNI-T UTi220B Thermal Imager (-10~400℃; 200x150pixels; 3.1mrad)

Certifications: CE/RoHS

Temperature range: -10~400℃

IR resolution: 200x150 pixels

Field of view (FOV): 35°x26°

Thermal sensitivity (NETD): 100mk

Spatial resolution (IFOV): 3.1mrad

Frame rate: 9Hz

Measurement accuracy: ±2℃ or ±2% whichever is greater

Palettes: 7

Emissivity: Adjustable (0.01-1)

Focus: Focus free

Display modes: Thermal, visible, blending

Display: 2.8”LCD

ROI (eliminates interference): √

General Characteristics

Power: Li-ion battery (3.6V 5000mAh)

Product net weight: Around 910g

Product net size: 236mm x 75.5 mm x 86mm

Standard accessories: Micro SD card, Type-C USB cable, English manual
