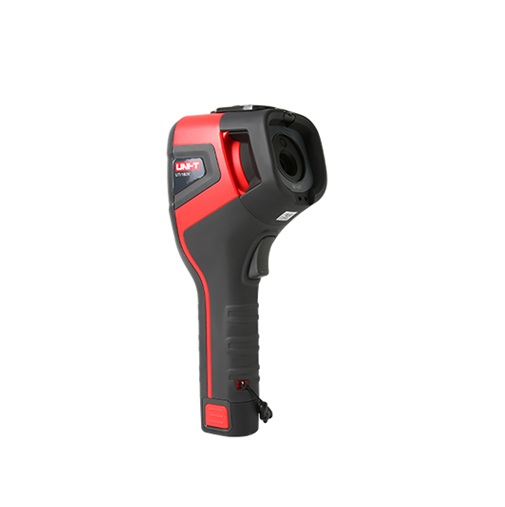

UNI-T UTi160V Thermal Imager (160×120pixels,-20~350°C)

IR resolution: 160 × 120 pixels

Field of view (FOV): 30°×23°

Thermal sensitivity (NETD): ≤60mk

Temperature range: -20~350°C

Spatial resolution (IFOV): 3.3mrad

Frame rate: 50Hz

Measurement accuracy: ±2°C or ±2%

Focus: Focus free

Digital zoom: 2×, 4×

Display modes: Thermal, image blending, visible light, PIP

Display screen size: 3.5”TFT LCD

Auto capture of Hi/Lo temperature: Yes

Isotherm: Yes

Measurement modes: Point, area, line

Wifi: Yes

PC analysis software: Yes

Drop proof: 1m

IP rating: IP43

General Characteristics

Power: Li-ion battery: 3.7V/4200mAh

Product color: Red and grey

Product net weight: 1.8kg(package)

Product size: 258mm x 98mm x 90mm

Standard accessories: Li-on battery x 2, USB power supply with multi plugs, wrist strap, adaptor×5, SD card, USB cable, PC software CD
