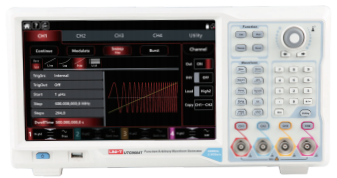

Channel: CH1 & CH2 (Main) => Max. frequency: 350MHz
Channel: CH3 & CH4 (Slave) => Max. frequency: 160MHz
Sampling rate: 2,5GSa / s (CH1 & CH2)
625MSa/s (CH3 & CH4)
Vertical resolution: 14bits (CH1 & CH2)
16bits (CH3 & CH4)
Arbitrary wave length: 8pts-64Mpts (CH1 & CH2)
8kpts (CH3 & CH4)
Working mode: Continue, modulation, frequency sweep, burst, cymometer, digital protocol
Continue: Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, arbitrary waveform
Modulation types: AM, PM, FM, DSBAM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM
Frequency sweep types: Linear, logarithmic, list, stepping
Burst types: N cycle, gating, infinite
Digit types: SPI, I2C, UART
Hardware cymometer: 100mHz-800MHz, DC/AC coupling
Frequency Characteristics
- CH1 & CH2
Sine wave: 1μHz-350MHz
Square wave: 1μHz-120MHz
Pulse wave: 1μHz-120MHz
Ramp wave: 1μHz-20MHz
Noise: 1μHz-350MHz
Arbitrary wave (DDS): 1μHz-80MHz
PRBS: 1μbps-80Mbps
Harmonic wave: 1μHz-175MHz
- CH3 & CH4
Sine wave: 1μHz-160MHz
Square wave: 1μHz-50MHz
Pulse wave: 1μHz-50MHz
Ramp wave: 1μHz-8MHz
Noise: 1μHz-160MHz
Arbitrary wave (DDS): 1μHz-50MHz
PRBS: 1μbps-40Mbps
Harmonic wave: 1μHz-80MHz
Frequency resolution: 1μHz
Rise/fall time: 1MHz, 1 Vpp, 50Ω load
<2ns (CH1 & CH2), <6ns (CH3 & CH4)
Output amplitude (High Z): ≤40MHz - ≤600MHz (CH1 & CH2)
≤20MHz - ≤200MHz (CH3 & CH4)
Amplitude accuracy: (1kHz sine wave with 0V offset, >10mVpp)
± (1% of set amplitude+1mVpp)
DC offset ranges: DC output range: peak value AC＋DC
-5Vpp~5Vpp(50Ω); -10Vpp~10Vpp(High Z)
DC offset accuracy: ±1% of offset set value ± 0.5% of amplitude set value ±2mV
Interface
Standard configuration: USB Host, USB Device, LAN
Output resistance: 50Ω
Power: 100~240V AC, 50Hz/60Hz; 100~120Vrms (±10%), 400 Hz
Display: 10.1 inch TFT capacitive touchscreen with 1280x800 resolution
Product size(W×H×D): 370mmx115mmx185mm
Product net weight:4.04kg
Standard quantity per carton: 1pc
Standard carton size: 500mmx305mmx315mm
Standard carton gross weight: 6.06kg
