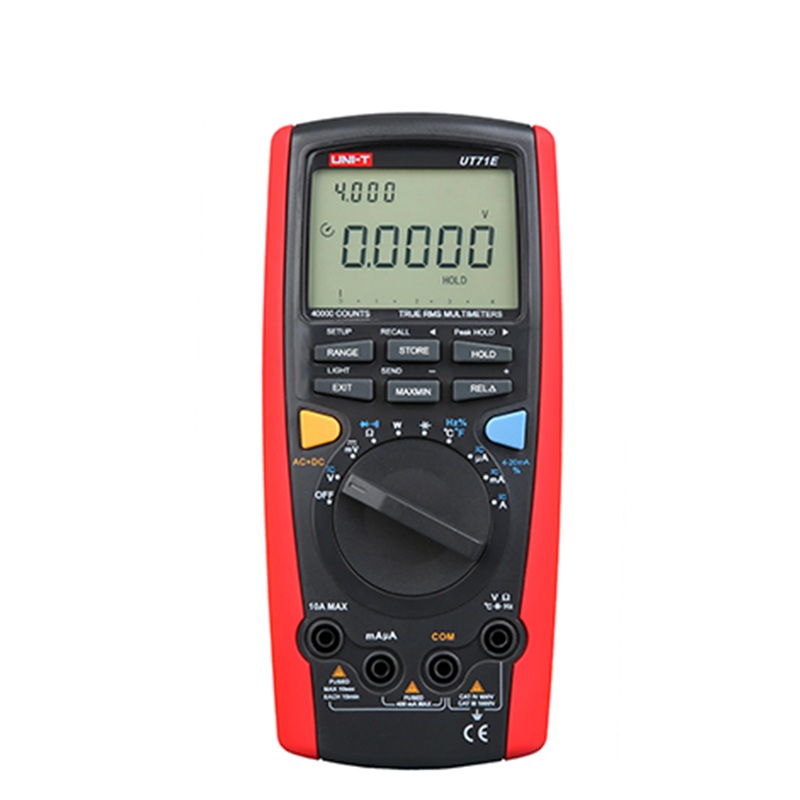

UNI-T UT71E Digital Multimeter (0.025%,1000V,10A,True RMS)

DC voltage (V): 1000V ±(0.025%+5)

AC voltage (V): 1000V ±(0.4%+30)

DC current (A): 10A ±(0.1%+15)

AC current (A): 10A ±(0.7%+15)

Resistance (Ω): 40MΩ ±(0.3%+8)

Capacitance (F): 40mF ±(1%+20)

Frequency (Hz): 40Hz~200MHz ±(0.01%+8)

Temperature: -40°C~1000°C ±(1%+30)

Temperature: -40°F~1832°F ±(1.5%+50)

Power: 9V battery (6F22)

Display: 73mm x 50mm

Product color: Red and grey

Product net weight: 384g

Product size: 200mm x 93mm x 40mm

Standard accessories: Battery, test leads, alligator clip, test clips, USB interface cable, PC software CD, carrying bag, point contact temperature probe, power adaptor

Features:

Display count: 40000

Datalogging: Yes

Auto range: Yes

Bandwidth: 100kHz

True RMS: Yes

Duty cycle: Yes

Temperature: -40~1000°C

Diode test: Yes

Transistor test: No

Continuity buzzer: Yes

NCV: No

MAX/MIN: Yes

Relative mode: Yes

USB: Yes

Bluetooth®: Yes

AC+DC: Yes

Peak hold: No

RS-232: No

Analog bar: Yes

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input alarm: Yes

Input impedance: ≥10MΩ

Category ratings: CAT III 1000V CAT IV 600V

Drop test: 1m
