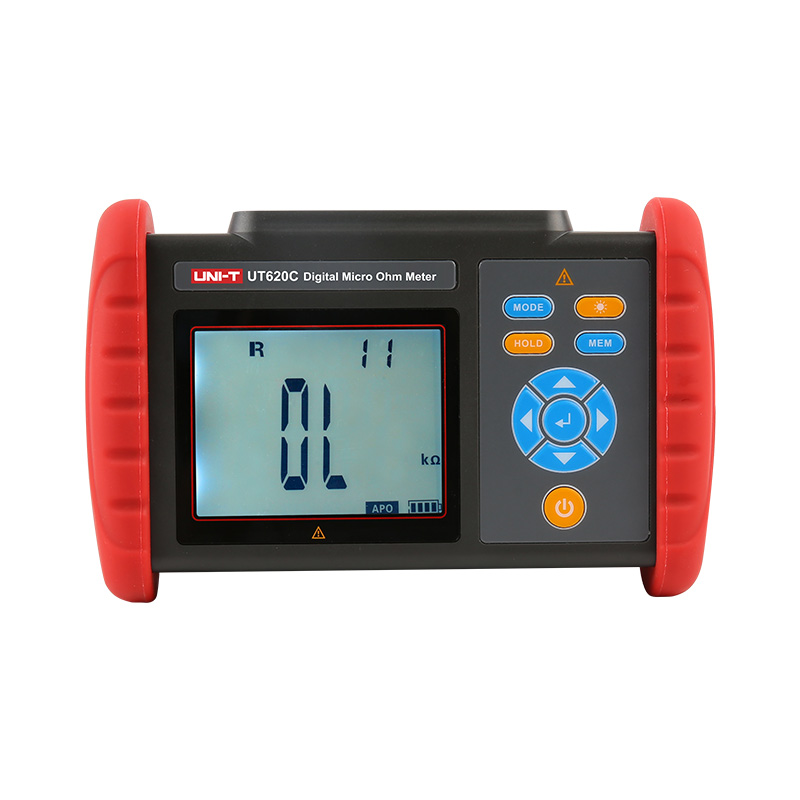

UNI-T UT620C Digital Micro Ohm Meter (0.001mΩ~300.0KΩ)

DC Resistance measurement:

RangeResolution:

0.001mΩ～10.000mΩ0.001mΩ

10.01mΩ～100.00mΩ0.01mΩ

100.1mΩ～1000.0mΩ0.1Ω

1.001Ω～10.000Ω0.001Ω

10.01Ω～100.00Ω0.01Ω

100.1Ω～1000.0Ω0.1Ω

1.001KΩ～10.000KΩ0.001KΩ

10.01KΩ～100.00KΩ0.01KΩ

100.1KΩ～300.0KΩ0.1KΩ

Acurracy: ±0.1%±20dgt

Features:

Measurement method: Four-wire measurement

Screen: LCD screen (71 mm×52mm)

Backlight: √ (Controllable gray and white screen)

Response time: Around 2times/sec

Power supply: DC 3.7V 2000mAh lithium battery

Power: Measurement power: ≤8W

Data storage: 500 set

Overload protection: √

Auto power off: √

Measurement current: ≥1A

Open circuit voltage: ≤4.2V

Operating temperature: 18℃～28℃; below 70%rh

Storage temperature: -15℃～50℃; below 70%rh

Insulation resistance: Above 10MΩ (the voltage between circuit and shell: 500V)

Withstand voltage: AC 3700V(between circuit and shell)

Applicable safety regulations: IEC61010-1; CAT Ⅲ 600V; Pollution degree 2
