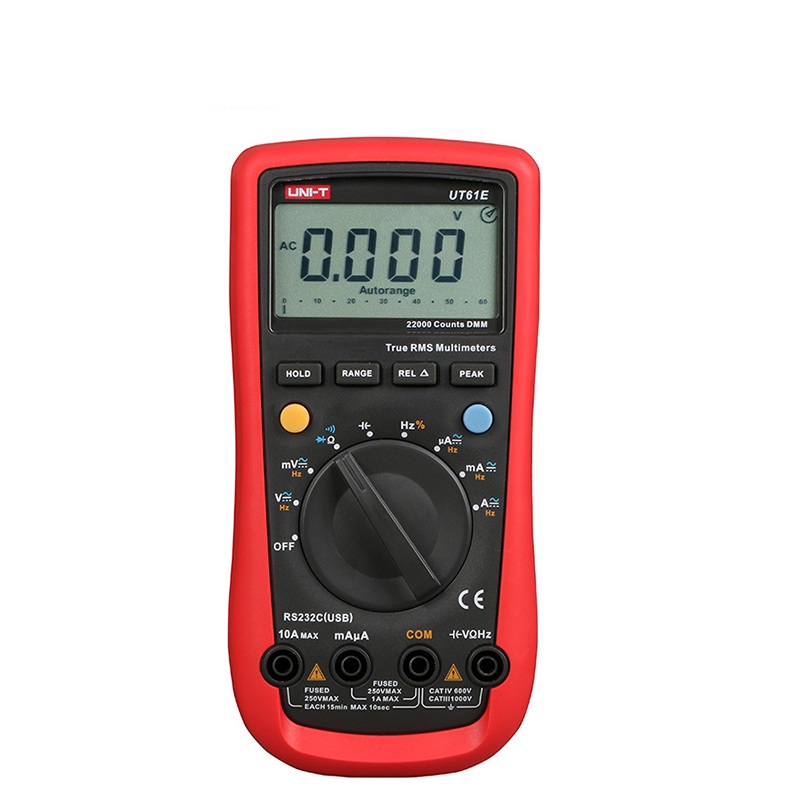

UNI-T UT61E Digital Multimeter (1000V,10A, ±0.1%, C 220mF)

DC voltage (V): 1000V ±(0.1%+2)

AC voltage (V): 750V ±(0.8%+10)

DC current (A): 10A ±(0.5%+10)

AC current (A): 10A ±(0.8%+10)

Resistance (Ω): 220MΩ ±(0.5%+10)

Capacitance (F): 220mF ±(3%+5)

Frequency (Hz): 10Hz~220MHz ±(0.01%+5)

Power: 9V battery (6F22)

Display: 65mm x 43mm

Product color: Red and grey

Product net weight: 370g

Product size: 180mm x 87mm x 47mm

Standard accessories: Battery, test leads, multi-purpose socket, RS-232 interface cable, PC software CD

Optional accessory: USB interface cable

Features:

Display count: 22000

Auto range: Yes

Bandwidth: 45Hz~10kHz

True RMS: No

Duty cycle: 0.1%~99.9%

Diode test: Yes

Transistor test: No

Continuity buzzer: Yes

NCV: No

MAX/MIN: No

Relative mode: Yes

USB: No

Bluetooth®: No

AC+DC: No

Peak hold: Yes

RS-232: Yes

Analog bar: Yes

Data hold: Yes

Auto power off: No

LCD backlight: No

Input alarm: No

Input impedance: ≥10MΩ

Category ratings: CAT III 1000V CAT IV 600V

Drop test: 1m
