Pressure Measurement Range / Resolution:
-1 to 60bar / 0.01bar
-1.01 to 61.18kg/cm² / 0.01kg/cm²
-75.0 to 4,500.3cmHg / 0.1cmHg
-14.5 to 870.2psi / 0.1psi
-29.52 to 1,771.8inHg / 0.1inHg
-100 to 6,000kPa / 1kPa
-0.100 to 6.000MPa / 0.001MPa
Pressure Measurement Accuracy: ±0.5%FS
Temperature Measurement Range / Resolution: -50℃ ~ +150℃ / 0.1℃
Temperature Measurement Accuracy: ±0.5℃ (-50℃~80℃), ±1℃ (others)
Wire Length: 2m
Units:
Pressure: Bar, kg/cm², cmHg, psi, inHg, kPa, MPa
Temperature: ℃, ℉
Refrigerant Types: 10 preset types (set via APP, total 94 types available)
Evaporating / Condensing Temperature: As per the refrigerant type
High / Low Pressure Switch: √
Data Record: 8000
Data Record Interval: 1s ~ 1h (APP setting)
LED Indicators: Red (High Pressure); Blue (Low Pressure)
Pressure Zeroing: √
Screen Backlight: √
Phone APP Support: √ (iENV)
Auto Power Off: √
Firmware Upgrade: √
Temperature Clamp Port: 3.5mm port
Battery Life: 100 hours (alkaline battery; backlight OFF; LED ON; 1-min record interval)
IP Rating: IP54
Pressure Connector: 1/4″ SAE connector
Over Range Indication: OL (>65bar)
Working Temperature & Humidity: -10℃ ~ +50℃, <90%RH
Storage Temperature & Humidity: -20℃ ~ +60℃, <80%RH
Power Supply: 3x Alkaline AA battery
Product Size:
UT336P: 145*68*39mm
UT-T19: 154*88*24mm
Product Net Weight: 250g(Not battery included)

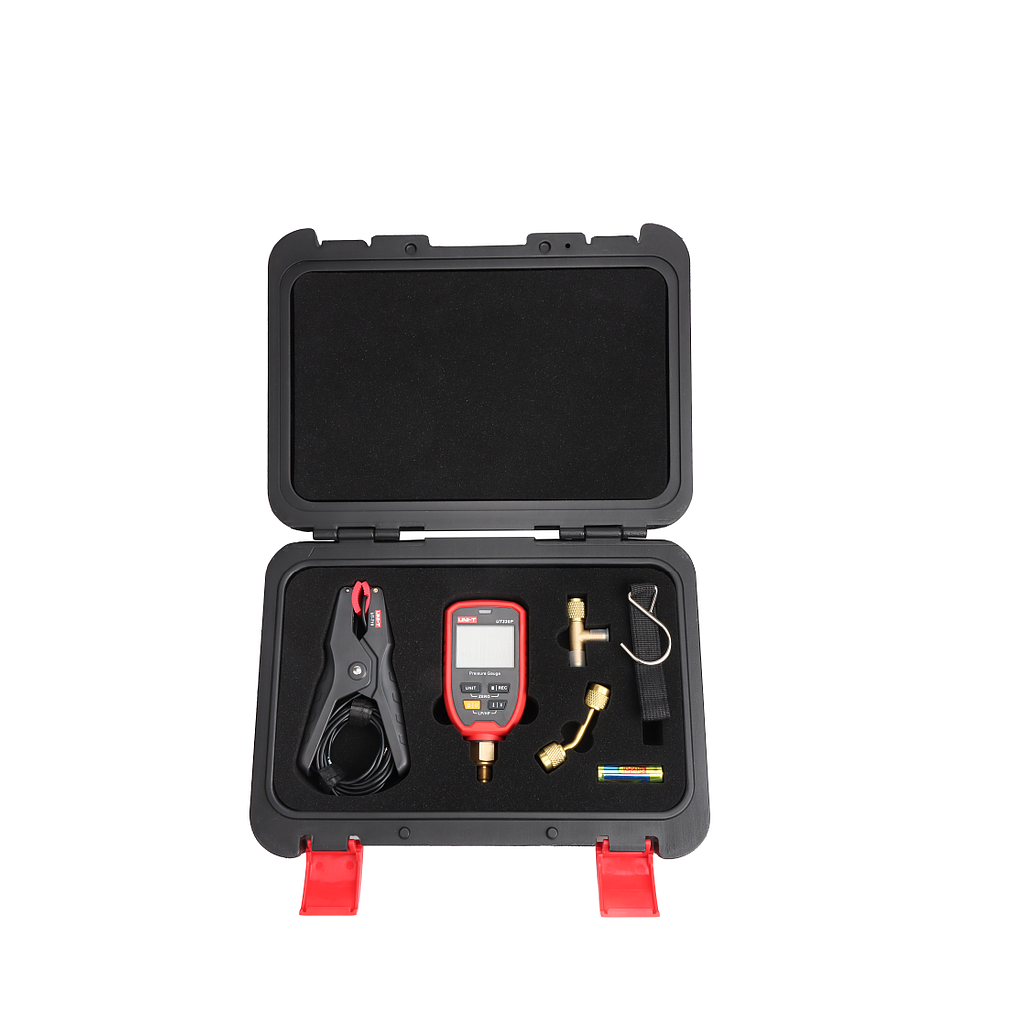

Standrad Accessories: Wireless Pressure Gauge, Temperature Clamp, Quick Start Guide, Safety Guide, Download Guide of Common Files, AA Battery*3, Hand Strap, Toolbox, Tee Connection 1/4″ SAE, Bent Adapter 1/4″ SAE
