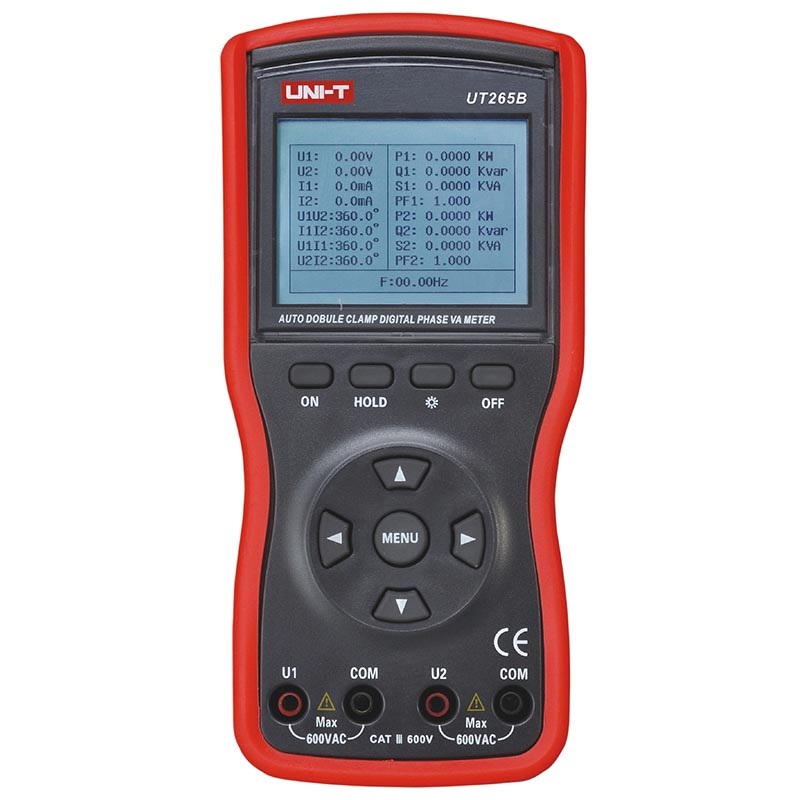

UNI-T UT265B 2 phase power meter (60A,600V, 12kw)

AC current (A): 0mA~20A ±(1.5%+3)

AC voltage (V): 0V~600V ±(1.5%+3)

Frequency (Hz): 45Hz~65Hz ±(2%+3)

Active power (W): 0W~12kW ±(3%+3)

Apparent power (VA): 0VA~12kVA ±(3%+3)

Reactive power (VAR): 0VAR~12kVAR ±(3%+3)

Power factor: -1~+1 ±0.03

Phase angle(°): 0°~360° ±1°

Display mode: LCD: 240 dots×160 dots

Clamp size: Acuminate current clamp: 7.5mm×13mm (optional)

Round jaw current clamp: 35mm×40mm (optional)

Auto range: Yes

RS-232: Yes

Data storage: 1500

LCD backlight: Yes

Data hold: Yes

Input impedance for DCV: ≥2MΩ

Auto power off: About 15 minutes

Low battery indication: Yes

Sampling rate: About 0.5 times/s

Power: 1.5V battery (LR6) x 6

Product color: Red and grey

Product net weight: 550g

Product size: 196mm x 92mm x 54mm

Standard accessories: Batteries, current clamps (2pcs), test leads (2 yellow, 2 black)
