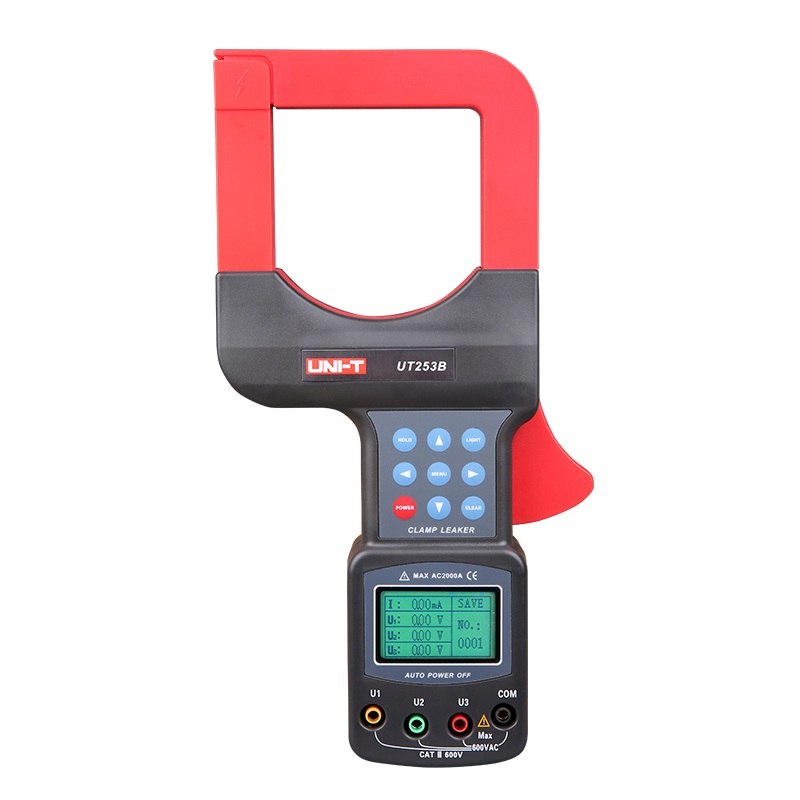

UNI-T UT253B Large Jaws Leakage Current Clamp Meter (2000A)

Leakage current (A):

+ 0mA~300A ±(1.5%+3)

+ 300A~1200A ±(2%+3)

+ 1200A~2000A ±(3%+3)

+ Voltage (Freq.): Yes

+ Resolution: 0.01mA

AC voltage (V):

+ 0.00V~600V ±(1.5%+3)

+ Frequency: 50Hz/60Hz

+ Resolution: 0.01V

Power: 1.5V Battery (LR6) x 4

Display: 43mm x 29mm

Product color: Red and grey

Product net weight: 1kg

Product size: 275mm x 145mm x 40mm

Standard accessories: Batteries, test leads (3 red, 1 black), RS-232 interface cable, PC software CD

Features

Auto range: Yes

RS-232: Yes

Display mode: 128 dots×64 dots LCD

Clamp size: 80mm×80mm

Data logging: 200

Data storage: 200

Peak hold: No

Data hold: Yes

Overload protection: No

Auto power off: Yes

Low battery indication: Yes

Over-range display: OL

Category ratings: CAT III 600V
