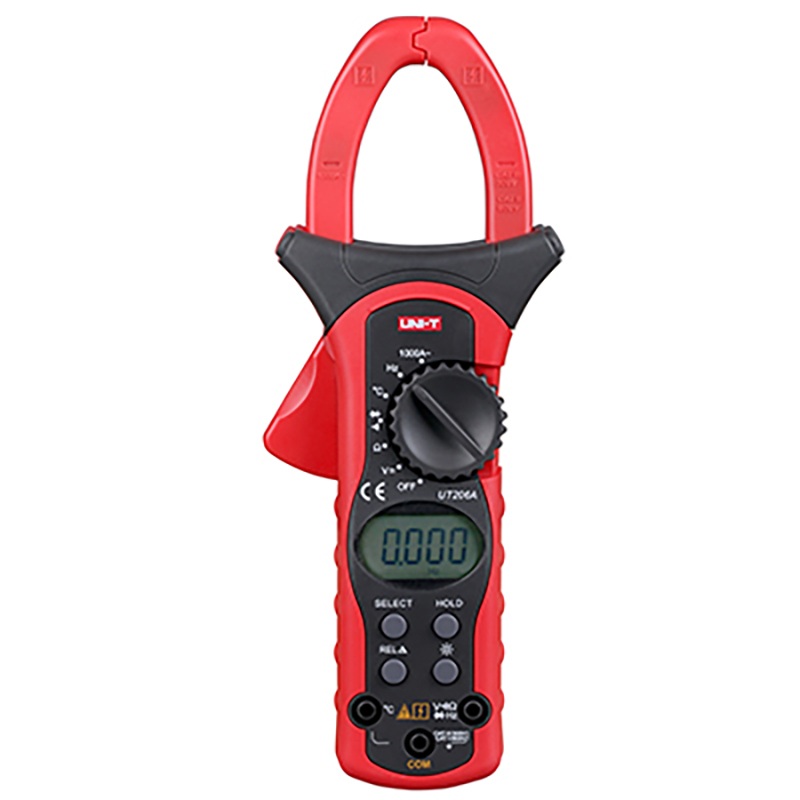

UNI-T UT206A Digital Clamp Meter (AC 1000A)

AC current (A): 1000A ±(1.5%+5)

AC voltage (V): 600V ±(1.2%+5)

DC voltage (V): 600V ±(0.8%+1)

Resistance (Ω): 40MΩ ±(1%+2)

Frequency (Hz): 10Hz~10MHz ±(0.1%+3)

Temperature (°C): -40 °C~1000°C ±(2%+8)

Display count: 4000

Auto range: Yes

Jaw opening: 40mm

Diode test: Yes

Auto power off: Yes

Continuity buzzer: Yes

Low battery indication: Yes

Data hold: Yes

Relative mode: Yes

LCD backlight: Yes

Full icon display: Yes

Input impedance for DCV: Around 10MΩ

Power: 9V battery (6F22)

Display: 37mm x 18mm

Product color: Red and grey

Product net weight: 350g

Product size: 236mm x 97mm x 40mm

Standard accessories: Battery, test leads, carrying bag,point contact temperature probe
