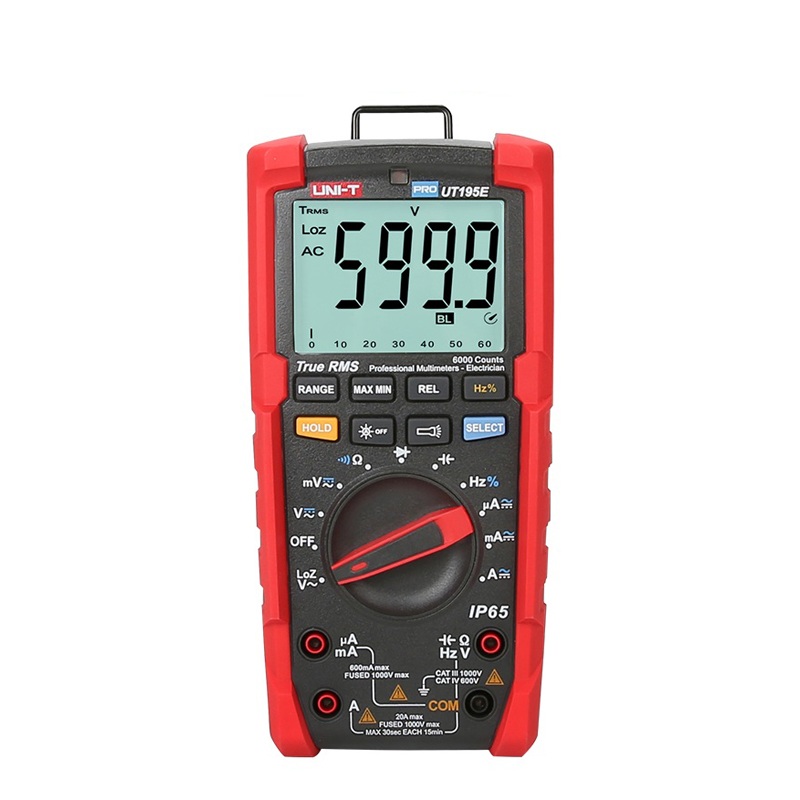

UNI-T UT195E Digital Multimeter (1000V, 20A,True RMS, IP65, 0.5%)

DC voltage: 600mV ~ 1000V ±(0.5%+3)

AC voltage: 600mV ~ 1000V ±(1.0%+3)

LoZ ACV: 600.0V ±(2.0%+3)

DC current (A): 600.0μA ~ 20A ±(0.8%+3)

AC current (A): 600.0μA ~ 20A ±(1.0%+3)

Resistance (Ω): 600.0Ω ~ 60.00MΩ ±(0.8%+2)

Capacitance: 6.000nF ~ 60.00mF ±(3%+5)

Frequency: 60.00Hz ~ 10.00MHz ±(0.1%+4)

Duty ratio: 0.1% ~ 99.9%±(2.0%+5)

Display count: 6000

Display interface (HTN): Single display

Measurement sampling rate: 3 times/s

Analog bar sampling rate: 10 times/s

Analog bar: 31 barsYes

True RMS: Yes

AC voltage frequency response: 45 ~ 400Hz

AC current frequency response: 45 ~ 400Hz

Diode/Continuity test: 3.5V

Auto/Manual range: Yes

Auto power off: Yes

Continuity buzzer: Yes

Low battery indication: Yes

Data hold: Yes

MAX/MIN: Yes

Function selection: Yes

Flashlight: Yes

Auto backlight: Yes

Operating temperature: 0 °C ~40 °C

2m drop test: Yes

Safety rating: IP65

Power supply: 9V battery (6F22/6LR61)

LCD size: 66mm×51mm

Device color: Red and grey

Device weight: 450g

Device size: 206.5mm×95.5mm×61mm

Standard accessories: Test probes, battery, carrying bag
