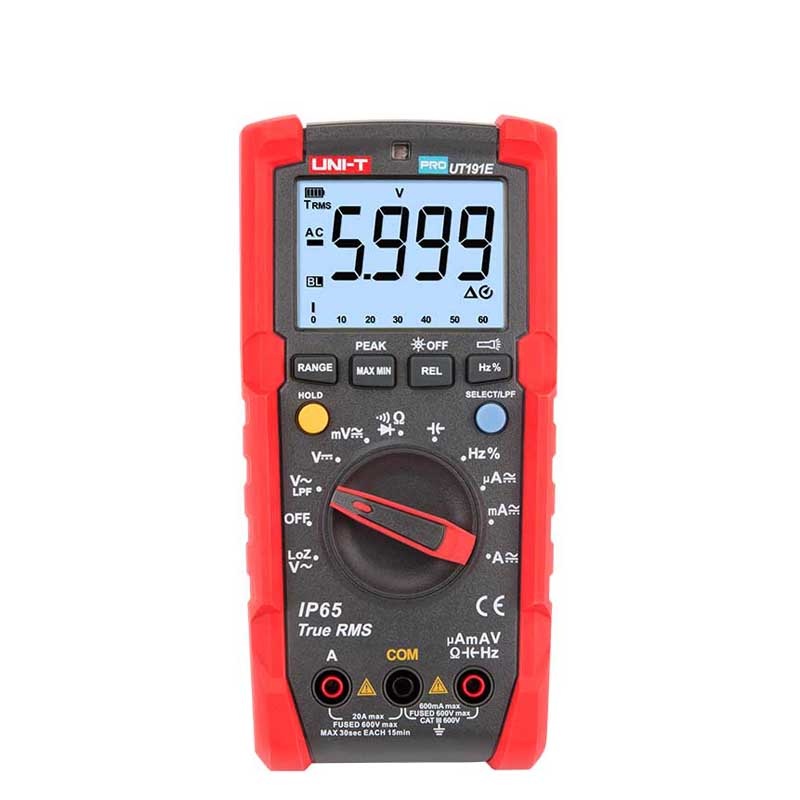

UNI-T UT191E Digital Multimeter (600V,20A,True RMS, ±0.5%, IP65)

DC voltage (V): 600V ±(0.5%＋3)

AC voltage (V): 600V ±(0.7%＋3)

LoZ ACV (V): 600V ±(2%＋5)

ACV LPF: 600V ±(2%＋5)

DC current (A): 20A ±(0.8%+3)

AC current (A): 20A ±(1%+3)

Resistance (Ω): 60MΩ ±(0.8%+2)

Capacitance (F): 60mF ±(3%+5)

Frequency (Hz): 10Hz~1MHz ±(0.1%+4)

Duty cycle: 0.1%~99.9% ±(2%＋5)

ACV peak hold: ±(2%+100)

Peak current detection: ±(3%+100)

Power: 9V battery

Display: 58mm x 42mm

Product color: Red and grey

Product net weight: 428g

Product size: 180mm x 87mm x 59mm

Standard accessories: Test lead, battery, carrying bag

Features:

Display count: 6000

Auto range: Yes

Bandwith (Hz): 40Hz~400Hz

True RMS: Yes

Diode test: Yes

Peak hold: Yes

Continuity buzzer: Yes

NCV: No

MAX/MIN: Yes

Relative mode: Yes

VFC/LPF: Yes

Analog bar: Yes

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input alarm: Yes

Input impedance: ≥10MΩ

Category ratings: CAT III 600V

IP rating: IP 65

Drop test: 2m
