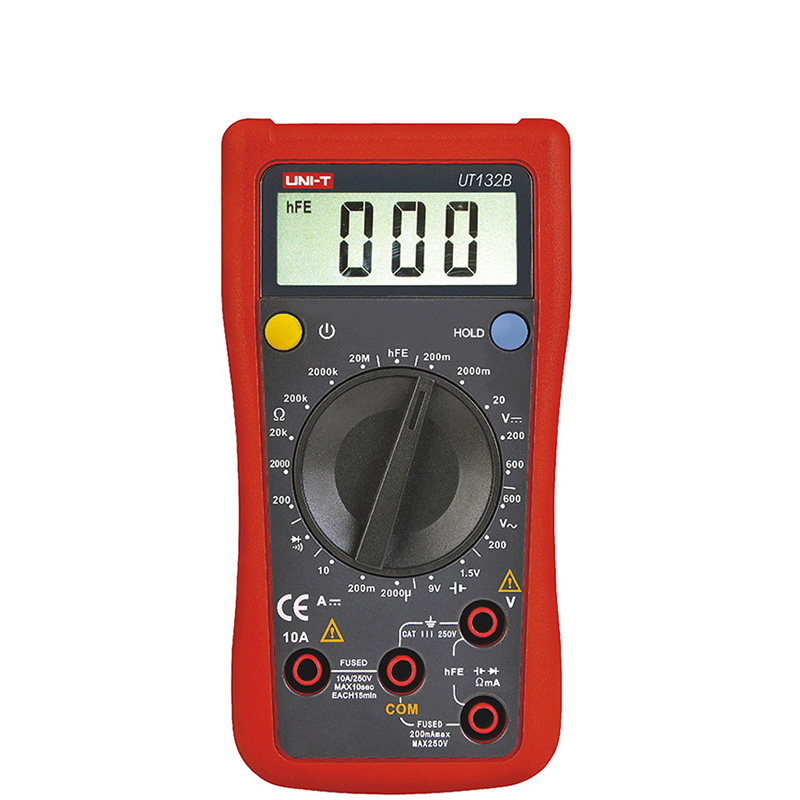

UNI-T UT132B Handheld Digital Multimeter (DC/AC 600V, DC10A)

DC Voltage (V):

+ EU: 200mV/2000mV/20V/ 200V/600V ±(0.5%+2)

+ ROW: 200mV/2000mV/20V/ 200V/250V ±(0.5%+2)

AC Voltage (V):

+ EU: 200V/600V ±(1.2%+3)

+ ROW: 200V/250V ±(1.2%+3)

DC Current (A): 2000μA/200mA/10A ±(1%+2)

Resistance (Ω): 200Ω/2000Ω/20kΩ/200kΩ/2000kΩ/20MΩ ±(0.8%+5)

Display Count: 2000

Manual Range: Yes

Battery test: 1.5V/9V ±(1%+2)

Diode: Yes

Continuity buzzer: Yes

Transistor: Yes

Low Battery Indication: Yes

Data Hold: Yes

Input Impedance for DCVAround 10MΩ: Yes

Power: 9V battery (6F22)

LCD Size: 49mm × 18mm

Product Color: Red and grey

Product Net Weight: 200g

Product Size: 72mm×137mm×35mm

Standard Accessories: Battery, test lead, Multi-purpose socket
