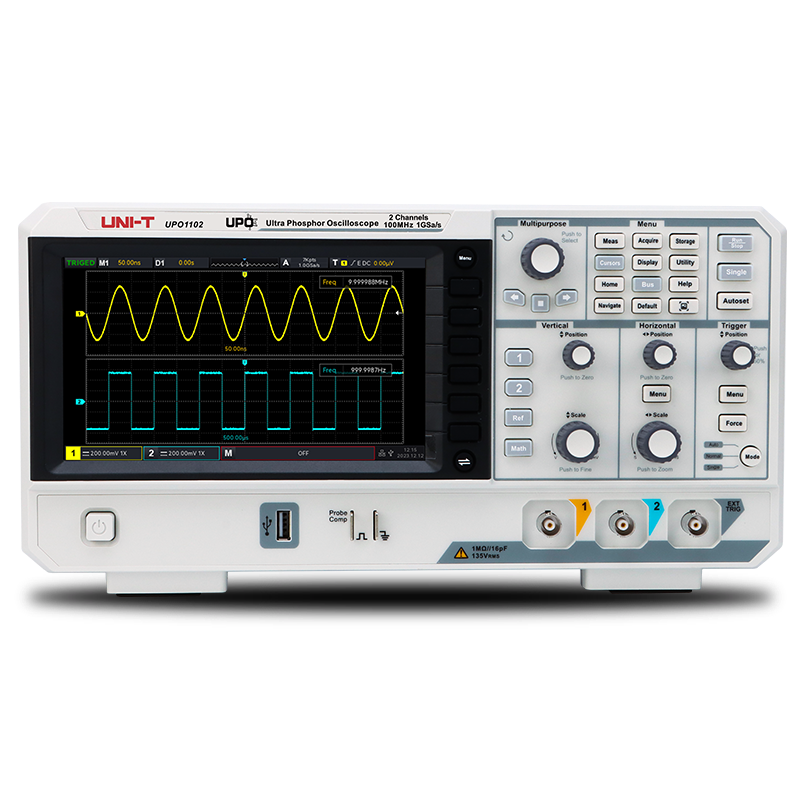

Scope Type: DSO
Bandwidth: 100MHz
Channels: 2 Analog
Real-Time Sample Rate: 1GSa/S
Rise Time: ≤3.5ns
Memory Depth: 56Mpts
Capture rate: 500,000wfms/s
Input impedance: (1 MΩ ± 2%)|| (16 pF ± 2 pF)
Acquisition mode: Normal, peak detect, high resolution, and averaging
Vertical Scale @1MΩ: 500μV/div to 20V/div
# Automatic Measurements: 36
Logic Pod Included: No
Waveform Generator: No
Included Bus Protocols: RS232, UART, I2C, SPI
Optional Bus Protocols: None
Logic Pod Included: Not Available
Display: 7-inch TFT
Touchscreen: No
Included Accessories: Power cord, USB2.0 printing cable, Passive probe 100MHz * 2(UT-P04)
