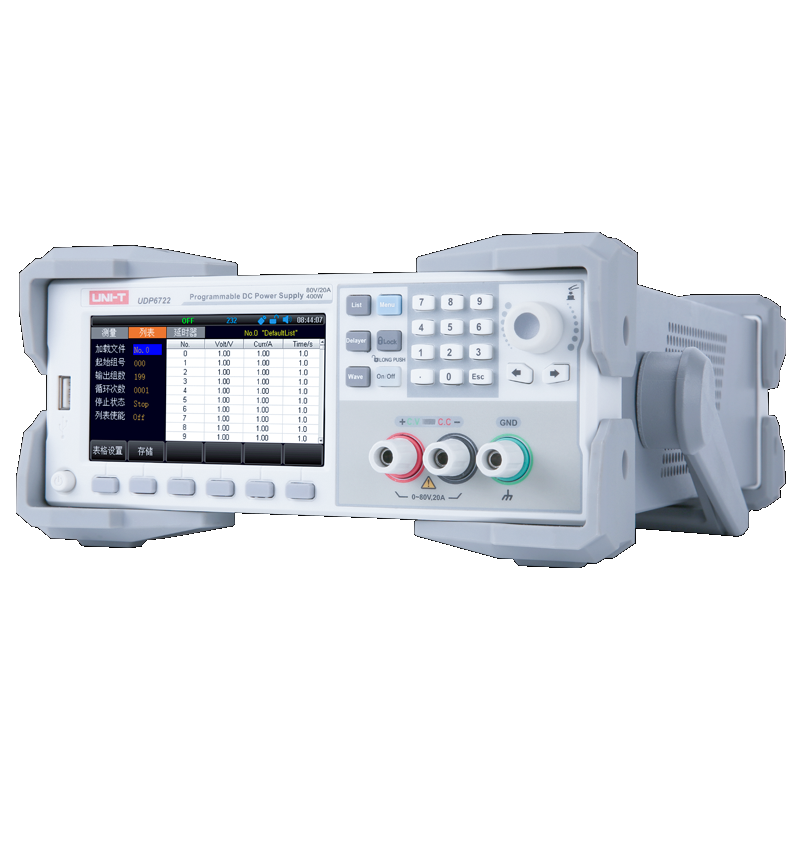

UNI-T UDP6731 Programmable DC power supply (1 chanel, 80V, 15A, 360W)

- Channel: 1

- Output Rating: Voltage: 0~80V；0~15A；360W

- Load Regulation

Voltage: <0.03%+30mV

Current: <0.03%+15mA(<19.5mA)

- Line Regulation

Voltage: <0.03%+30mV

Current: <0.1%+10mA

- Programming Accuracy

Voltage: <0.1%+10mV

Current: <0.3%+10mA

- Read back Accuracy

Voltage: <0.1%+10mV

Current: <0.3%+10mA

- Ripple

Voltage: <12mVrms

Current: <27mArms

- Display: Screen : 2.8 inch LCD

- Dimension: W*H*D: 88mm×174mm×275mm

- Weight Net: 2.5kg

- List & delayer: Yes

- Input: AC: 10(±10%)V/220(±10%)V

- Remote compensation: 0.6V

- Interface: Remote: RS232
