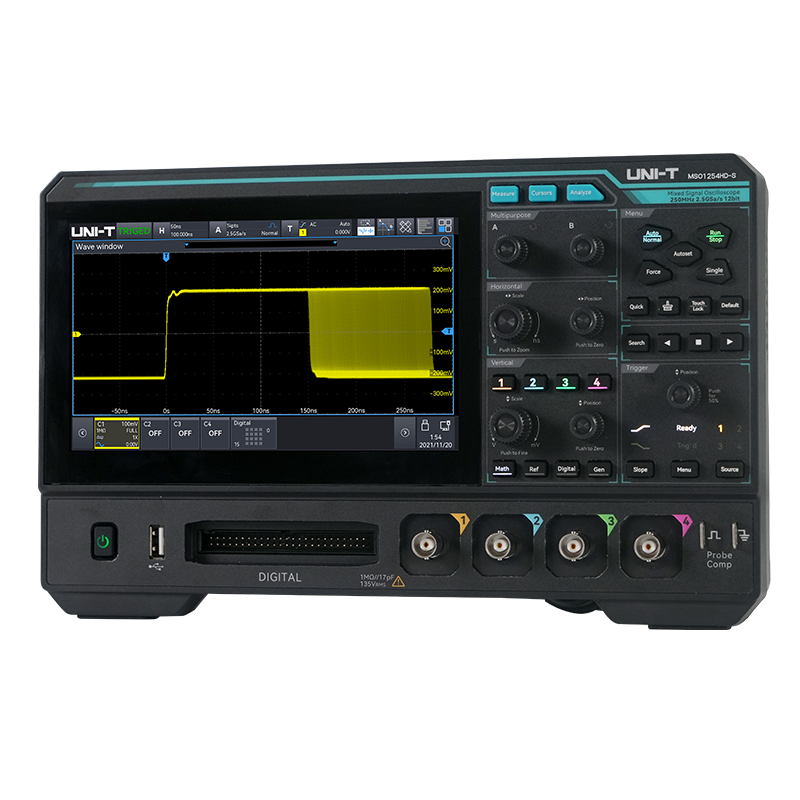

Bandwidth: 250 MHz
Channels : 4
Sample rate (analog) : 2.5 GSa/s (Single channel: ), 1.25 GSa/s (Dual channel), 625 MSa/s (four channels)
Sample rate (digital) : 1.25GSa/s
Memory depth : 100Mpts
Max. Waveform capture rate: ≥200,000 wfms/s; ≥1,000,000 wfms/s (sequence mode)
Vertical resolution: 12-bit (ERES is enabled with a maximum of 16-bit)
Time base scale: 500 ps/div to 1 ks/div
Input impedance : (1 MΩ±2%) || (17 pF±2 pF)
Input impedance (digital): (101 kΩ±1%)||(9 pF ± 1 pF)
Vertical scale : 500 μV/div ~ 10 V/div
DC gain accuracy : <5 mV: ±2% full scale,≥5 mV: ±1.5% full scale
Waveform record : 100,000 frames
Serial protocol analysis : Standard:RS232/UART, I2C, SPI,CAN, CAN-FD, LIN, Audio
Auto measurements : 56 kinds of parameter, simultaneously display 27 kinds of parameter measurement
Measurement statistics : Mean, Maximum, Minimum, Std Dev, Count, Tendency chart, Histogram
Arbitrary waveform generator : 1 CH, 25 MHz , 200 MSa/s
Frequency counter : 7-digit hardware frequency counter
Digital voltmeter: 4digits,DC/AC RMS/DC+AC RMS
Advanced analysis function : Power Analysis (Optional), BODE Plot (Optional), Limit Mask Testing
Standard interfaces: USB Host, USB Device, LAN, AUX Out, Gen Out, HDMI
General Characterisitics:
Power : Power is greater than or equal to 12 V/3 A; Supports Type-C or a portable charger with PD protocol
Display : 7 - inch multi-touch capacitive screen, 1024*600(H*V)
Product net weight: 1.56 kg
Product size (W×H×D): 282 mm×175 mm×49 mm
Standard quantity per carton : 4 pcs
Standard Accessories
National standard cable x 1
Type-C Adapter ×1
Protective ground wire
USB2.0 cable x 1
BNC-BNC direct-through line x 1
Passive probe x 4/2
