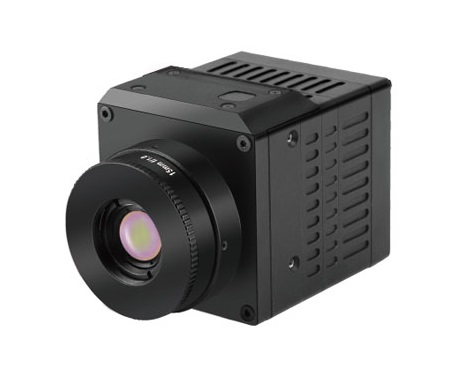

Detector Data
Type: Uncooled FPA
IR resolution: 384×288
Pixel pitch: 17μm
Spectral range: 8~14μm
NETD/Sensitivity: <60mK @F1.0, 30℃(50mK optional)
Lens Data:
Focal distance - FOV- IFOV:
Fixed 6.2mm - 55.5°*43°- 2.742mrad
Manual 15mm(optional) - 24°*18° - 1.133mrad
Motor 15mm - 24°*18° - 1.133mrad
Minimum imaging distance: 50cm
Focus: Manual/Fixed/Motor(support auto focus)
Image Performance:
Image enhancement: The second generation image algorithm Ultra DDE
Frequency: 25Hz
Digital zoom: 1.0X~4.0X, 0.1 step
Palette: 12 palettes(including iron, rainbow, white hot and black hot etc.)
Measure:
Temperature range: Three gear temperature measurement: -20℃~+150℃; 120℃~600℃; -20℃~+350℃
Measurement accuracy: ±2℃/±2%(reading)
Measurement correction: Support, manual/auto
Power System:
Working voltage: DC9.5~14V Standard: DC12V
Power consumption: Normal≤2W Peak power consumption:≤2.5W
Environment Parameters:
Operating temperature range: -20℃~+50℃
Storage temperature range: -40℃~+70℃
Humidity: ≤90%(Non-condense)
Vibration: 5Hz~200Hz~5Hz 2.5G swept sine
Shock: 30G 11ms
Physical data:
Size:
Without lens: 60.6mm(L) * 46mm(W) * 49.5mm(H)
With 15mm fixed focus lens: 70mm(L)* 46mm(W) * 49.5mm(H)
Weight: <145g(Without lens) With 15mm fixed focus lens: 190g
Mounting: UNC 1/4-20 standard tripod interface, M2 threaded joint
Packing Standard: Thermal camera, 10PIN terminal, warranty card, certificate, power cable, analog connection line, RCA to BNC connector
