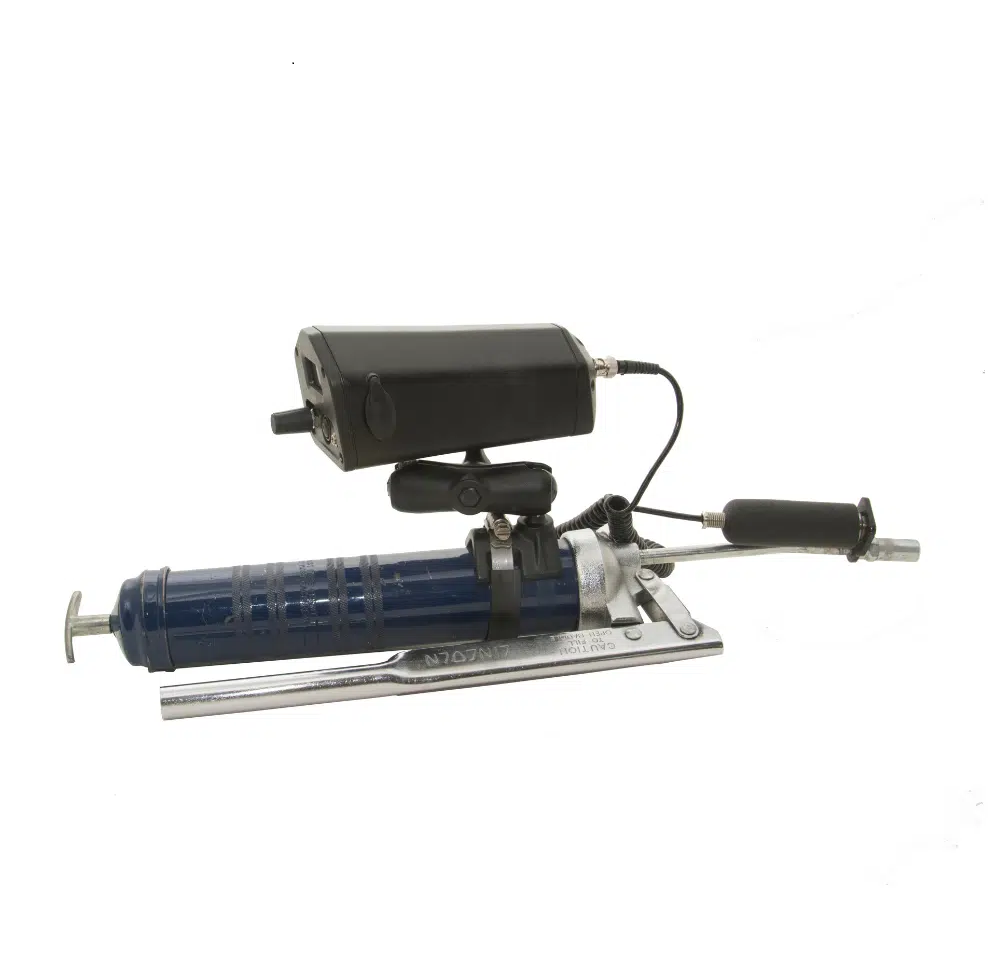

UE Systems Inc Ultraprobe 401 Digital Grease Caddy (20kHz – 100kHz)

Housing: Attaches directly to the grease gun, gives visual and audible indication for prober lubrication

Construction: PC + ABS Plastic

Dimensions: 17.8 x 8.1 x 7.6 cm (7” x 3.2” x 3.0”)

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Circuitry: Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion

Transducer: Magnetically Mounted Piezoelectric transducer

Frequency Response:

+ Peak response: centered around 30kHz

+ Frequency range: 20kHz – 100kHz

Indicators: dB, Battery Status and 16 Segment Bar Graph

Memory: 400 storage locations

Outputs: Calibrated heterodyned output, decibel (dB)

Response Time: < 10 ms

Display: 128 x 64 LCD with LED backlight

Power: Lithium Polymer rechargeable

Headset: Deluxe noise isolation headset for hard hat use over 23 dB of noise

attenuation meets or exceeds ANSI Specifications and OSHA standards

Attachment: Universal: fits most commercially used cartridge grease guns

Weight: 0.57 kg (1.25 lbs.)

INSPECTORS SIMPLY LISTEN TO:

• ASSESS LUBRICATION NEEDS

• MONITOR BEARING HEALTH
