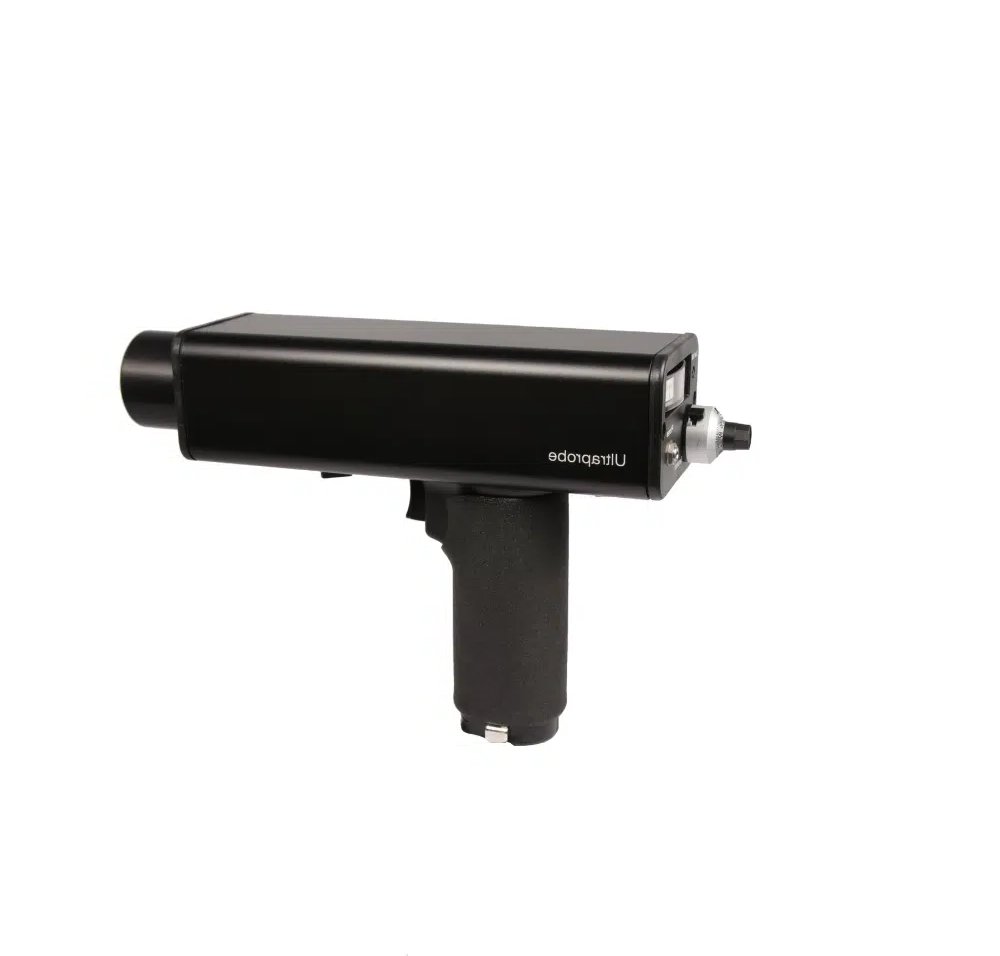

UE Systems Inc Ultraprobe 2000 Analog Ultrasonic Inspection System for predictive maintenance (20 kHz~100 kHz)

Analog Ultrasonic Inspection System for predictive maintenance

Construction: Hand-held pistol type made with aluminum and ABS plastic

Circuitry: Solid State heterodyne receiver with temperature compensation

Frequency Response: Frequency Detect ultrasonic frequencies between 20 kHz and 100 kHz, continuously variable; Frequencies are converted to 50 kHz to 3 kHz audio

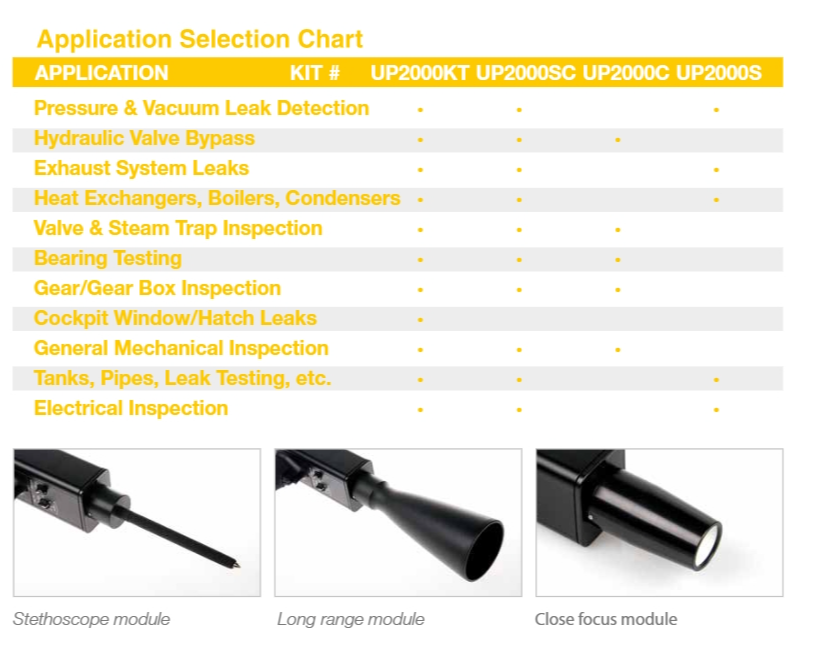

Probes: Scanning Module, Rubber Focusing Probe, Stethoscope Module

Transmitter: Patented warble tone transmission

Headset:

+Noise isolating type: Double headset wired monophonic.

+ Impedance16 ohms. Over 23 dB of noise attenuation.

+ Meets or exceeds specifications and OSHA standards

+ For hard hat use

Indicators: Ballistic output meter; linear calibration scale of 0-100 for logging relative measurements. Meter is accurate 1% throughout entire scale.

Low Level Battery LED indicator for main housing internal power supply.

Battery: Self contained NiMH rechargeable.

RECHARGING SYSTEM: Standard 110V. Also available in 220V.

Features:

+ Frequency Tuning Adjustment Dial: 20-100 kHz

+ Bi-Modal Meter Switch

+ Optional Auxiliary Mode: For chart recorder output: 0-50 mV

+ Sensitivity Control: Precision 10-turn adjustment dial

+ Spring loaded trigger switch

Overall size:

+ Complete kit in Zero Halliburton aluminum carrying case: 47 x 37 x 17 cm (18.5” x 14.5” x 6.5”)

+ Pistol Unit: 0.9 kg (2 lbs.)

+ Carrying Case: 6.4 kg (14 lbs.)

Sensitivity: Detects 0.127 mm (0.005") diameter leak @ 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.)

Threshold*: 1 x 10^–2 std. cc/sec to 1 x 10^–3 std. cc/sec.

Display Modes: Logaritmic and linear

Kit includes:

Frequency Selection (20 kHz – 100 kHz)

• Precision edgewise meter

• 3-way meter/auxiliary mode selector

• Numerically calibrated 10-turn sensitivity dial

• Rechargeable battery with lowlevel indicator light

• Anodized aluminum housing

• Trisonic™ Scanning Module

• Stethoscope/Contact Module

• Stethoscope Extension Kit

• Rubber Focusing Probe

• Warble Tone Generator

• Deluxe noise isolating headset

• Zero Halliburton aluminium carrying case

• Instruction Manual and Multimedia Training

INSPECTORS SIMPLY LISTEN TO:

• MONITOR BEARING HEALTH

• DETECT COMPRESSED AIR LEAKS

• FIND FAULTY STEAM TRAPS
