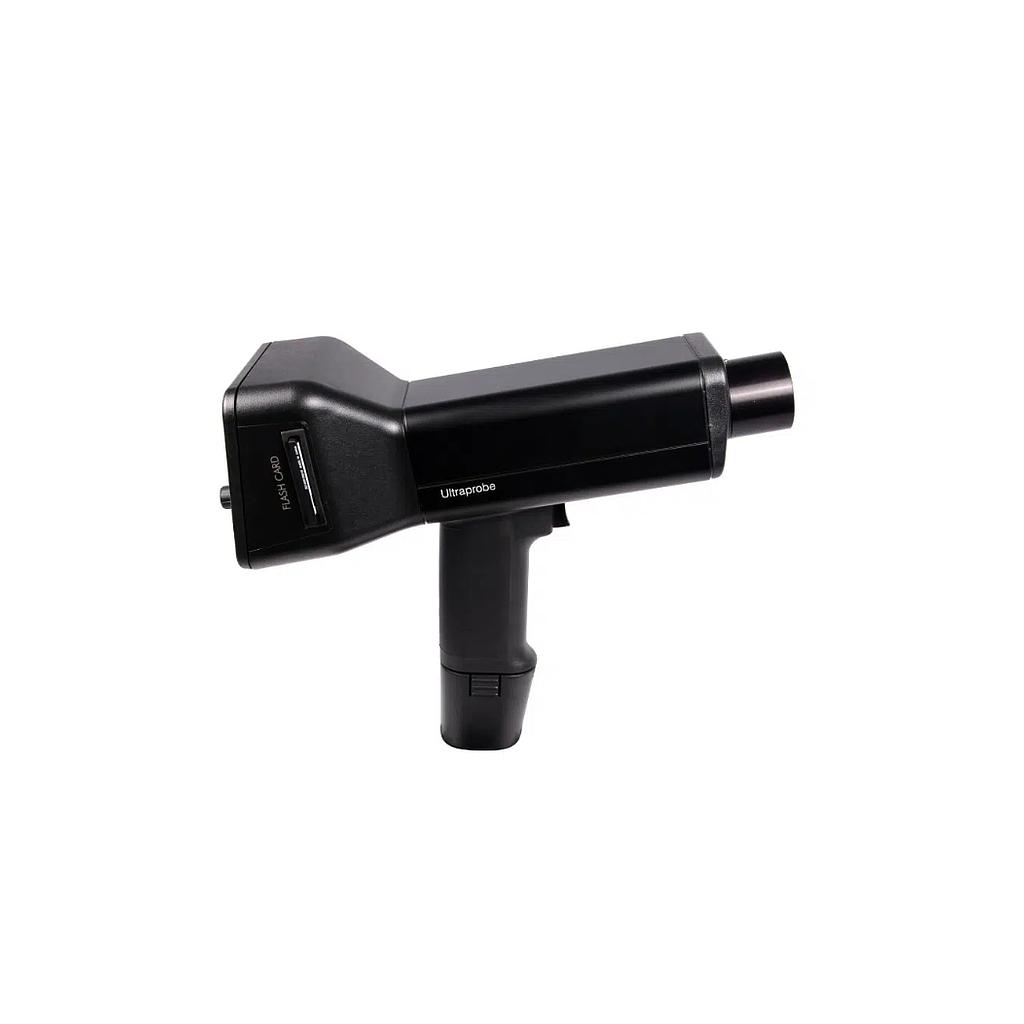

UE Systems Inc Ultraprobe 10000 Ultrasonic Inspection System for condition monitoring (20 KHz to 100 KHz)

Construction: Hand-held pistol type made with coated aluminum and ABS plastic

Circuitry: Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion

Frequency Range: 20 KHz to 100 KHz (tunable in 1 KHz increments)

Response Time: < 10 ms

Display: 64x128 LCD with LED Backlight

Memory: 400 storage locations

Battery: Lithium NIMH Rechargeable

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Outputs: Calibrated heterodyned output, decibel (dB) frequency, RS-232 data output

Probes: Trisonic Scanning Module and Stethoscope Module, Long Range Module and RAS/RAM

Headset:

+ Deluxe noise attenuating headphones

+ For hard hat use

Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph

Sensitivity: Detects 0.127 mm (0.005”) diameter leak @ 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.)

Threshold*: 1 x 10–2 std. cc/sec to 1 x 10–3 std. cc/sec.

Dimensions: Complete kit in Zero Halliburton aluminum carrying case 55 x 47 x 20 cm (21.5” x 18.5” x 8”)

Weight

+ Pistol Unit: 1.1 kg (2.35 lbs.)

+ Complete carrying case: 8.6 kg (19 lbs)

Display Modes: Real Time, Snap Shot, Peak Hold, Storage Display and Application Specific

INSPECTORS SIMPLY LISTEN TO:

• ASSESS LUBRICATION NEEDS

• MONITOR BEARING HEALTH

• DETECT COMPRESSED AIR LEAKS

• FIND FAULTY STEAM TRAPS

• SAFELY DIAGNOSE CORONA, ARCING, OR TRACKING
