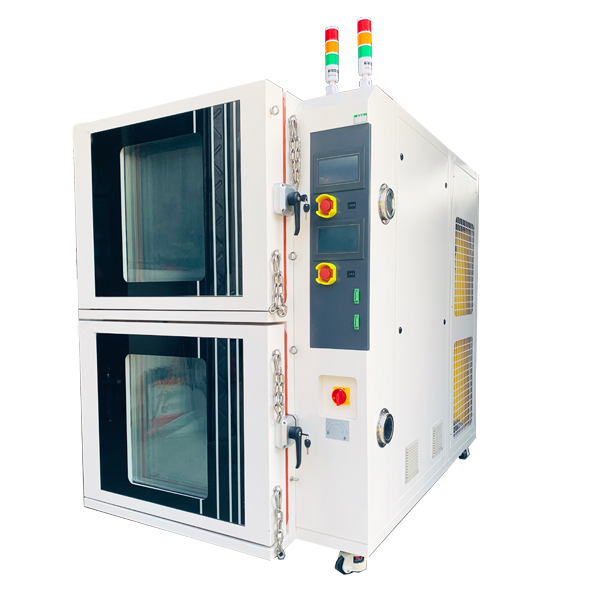

Uby Tech UP-6195 Double Box Temperature And Humidity Test Machine (80L~1000L)

Inner size W×H×D (mm): 500*400*400/500*600*500/600*850*800/100*100*80/100*100*100

Outside size W×H×D (mm): 92*138*108/102*146*116/102*162*126/113*172*148/158*195*148/158*193*168

Inner chamber volume (V) 80L/150L/225L/408L/800L/1000L

Temperature and humidity controll range: -20℃～150℃/-40℃～150℃/-70℃～150℃ RH20%-98%

Function

- Temperature and humidty fluctuation: ±0.5℃; ±2.5%RH

- Temperature and humidity deviation: ±0.5℃-±2℃; ±3%RH（>75%RH); ±5%RH(≤75%RH)

- Controller resolution: ±0.3℃; ±2.5%RH

Power supply KW: 4.0/ 6.0/ 6.0/ 6.0

Material:

- Inner material: SUS 304# steel plate

- Outside material: SUS 304# steel plate(surface disposing)

- Thermal insulation material: Thermostability high density chlorine formic acid foam insulator material

Power: 1φ 220V AC±10% 50/60Hz; 3φ 380V AC±10% 50/60Hz
