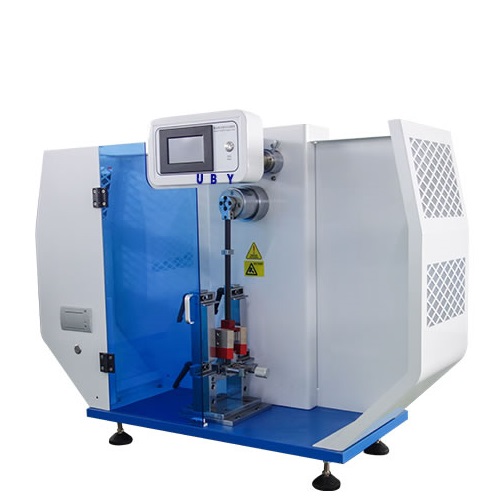

Uby Tech UP-6182C IZOD&Charpy Combined Impact Tester (2.9m/s, 3.8m/s)

Charpy impact test:

Impact speed: 2.9m/s; 3.8m/s

Pendulum bob energy: 1J, 2J, 4J, 5J; 7.5J, 15J, 25J, 50J

Pendulum bob Torque: Pd1＝0.53590Nm; Pd7.5=4.01924Nm

Pd2＝1.07180Nm; Pd15＝8.03848Nm

Pd4＝2.14359Nm; Pd25=13.39746Nm

Pd5＝2.67949Nm; Pd50＝26.79492Nm

Centre distance: 230mm; 395mm

Pendulum bob Pre-elevation: 150°

Blade fillet radius: R=2±0.5mm

Jaw fillet radius: R=1±0.1mm

Impact blade included angle: 30±l°

Pendulum bob impact: 1J：2%; 2J：1%; 0.5%

Engergy loss: 4J, 5J: 0.5%

Jaw interval distance: 40mm, 60mm, 70mm; 60mm, 70mm, 95mm

IZOD impact test:

Temperature: (15-35)℃

Impact speed: 3.5m/s

Impact energy: 1J, 2,75J, 5,5J, 11J, 22J

Impact moment: Pd1=0.535N·M

Pd2.75=1.4737N·M

Pd5.5=2.9474N·M

Pd11=5.8949N·M

Pd22=11.7898N·M

Bob angle: 150°±1°

Impact center distance: 335mm

Impact blade fillet radius: 0.8±0.5mm

Distance from impact blade to jaw: 22±0.2mm

Outside size: 560*300*840mm (LxWxH)

Weight: 135kg
