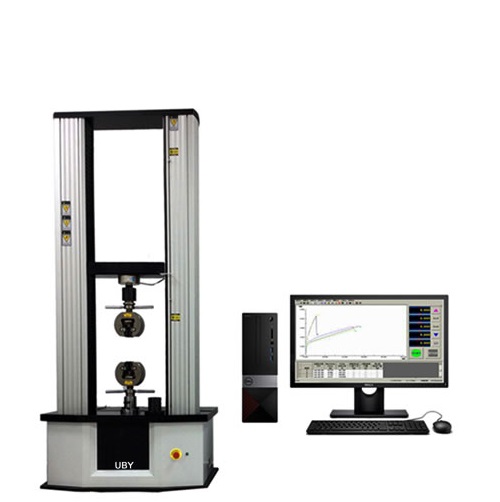

Uby Tech UP-6180D Double-Column Universal Testing Machine (50-500mm/min)

Design Standards: B16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587，ISO/TS 11405，ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ASTM D628,ASTM D638,ASTM D412.

Range of speed: 50-500mm/min

Motor: AC Motor

Capacity choice: 5, 10, 20, 50, 100, 200, 500, 1000, 2000,5000kg optional

Resolution: 1/150.000

Effective testing space: 400mm MAX

Accuracy: ±0.5%

Operation method: Windows XP, Win7 operation, computer control

Accessories: computer, printer, system operation manual

Optional accessories: customized clamps by appointed, force sensors, printer, and operation manual

Weight: 400KG

Dimension: (W×D×H)80×50×150cm

Power: 1PH, AC220V, 50/60Hz

Datasheet
