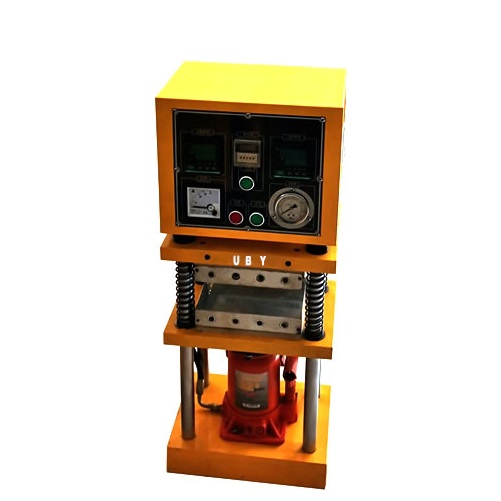

Uby Tech UP-6170F Manual Silicone Rubber Plate Compression Instrument (20T, 30T, 50T)

Capacity: 20T,30T-,50T ( Per request)

Temperature range: normal temperature ~300°C

Controller: optional electrical control and PLC programmable control

Vulcanization timing: 0.1S~99M~9.9H

Heating method: electric heating module

Temperature accuracy: ±2°C

Hot pressing plate: 200×200mm

Cold pressing plate: 220×220mm

Platen distance: 60mm

Plate material: SKD chrome molybdenum alloy

Platen hardness: HRC50~60

Plate surface: mirror chrome

Platen number: single layer

Cylinder stroke: Max 200mm

Pressure table: 0~350kg/cm2

Power: 10.6HP

Volume (W×D×H): 350*350

Power source: 3φ, AC380V, 20A three-phase five-wire

Weight: about 117kg
