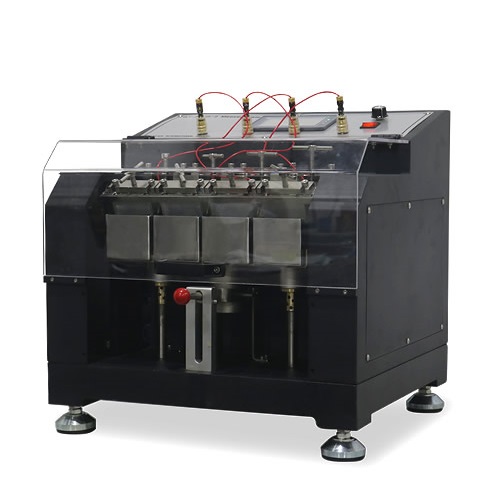

Uby Tech UF-2004 Maeser Water Penetration Tester (90±5 r/min)

Position: 4

Control method: Touch-screen control, 0~999.999

Clamps: V-shaped

Clamps tip radius: 7.5±0.5mm

Moving fixture flexing displacement: Non required

Moving fixture flexing angle: 30±1°

Test speed: 90±5 r/min

Shutdown method: Electrode induction

Sample size: 114x114mm

Power supply: 220V 50/60HZ

Dimensions (LxWxH): 49x45x45cm

Weight: 55kg

Standards: SATRA TM34 Type 1

Standard accessories: Stainless steel ball 550g

Electrode induction line 4pcs

Power line 1pc

Option accessories: GT-C48 Pneumatic Sample Press

(Cutter: 101.6x101.6mm and 114x114mm)

Electronic balance (300g/0.01g)
