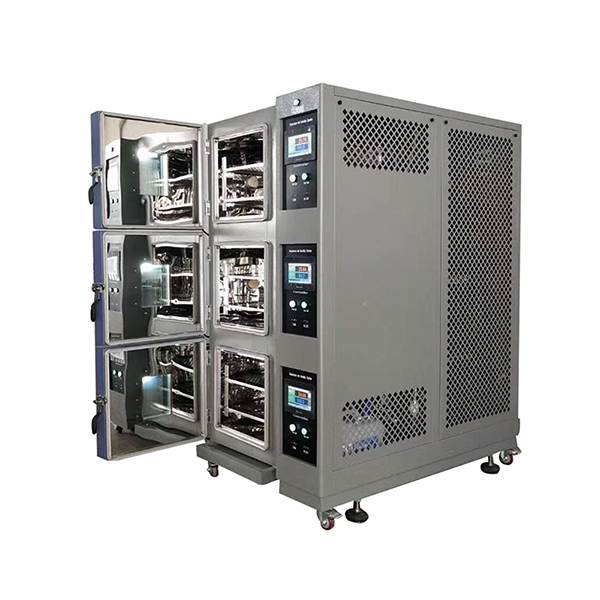

Uby Tech UP-6195 Three-in-one Temperature Humidity Test Chamber (-160℃~500℃; 20%RH ~98%RH)

Inner chamber size(mm)W*H*D: 600×450×600

Exterior chamber size(mm)W*H*D: 1260×1910×830

Performance:

- Temperature range: -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃,-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃

- Humidity range: 20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH)

- Temp.&Humi fluctuation: ±0.2°C, ±0.5%RH

- Temp.Humi.Uniformity: ±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%)No-load operation, After stead state 30 min.

- Temp.humi resolution: 0.01°C; 0.1%RH

- Heating rate: ≥3°C/min

- Cooling rate: ≥1°C/min

Material:

- Inner chamber material: SUS#304 stainless steel plate

- Exterior chamber material: Stainless steel plate+ powder coated

- Insulation material: PU & Fiberglass wool

Accessories: Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.

Datasheet
