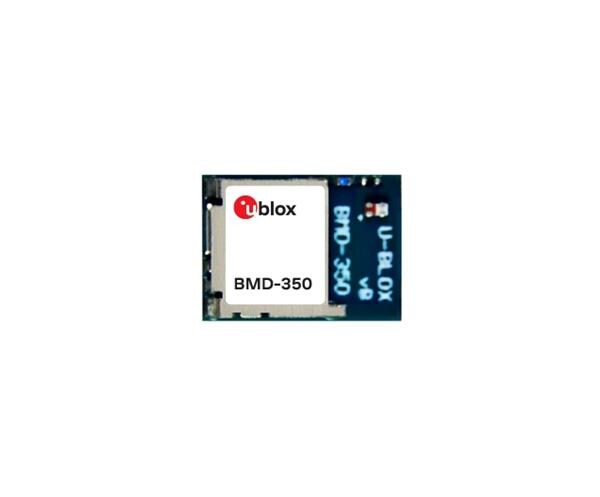

u-blox BMD-350-A-R Bluetooth Modules Bluetooth Module Low Energy 5.0

Width: 6.4 mm

Height: 1.5 mm

Length: 8.7 mm

Antenna: Integrated

Protocol: BLE, Bluetooth 5.0

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Sensitivity: - 96 dBm

Unit Weight: 1 g

Output Power: 4 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Modulation Technique: GFSK

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: Integrated

Operating Supply Voltage: 1.7 V to 3.6 V

Supply Current Receiving: 11.7 mA

Supply Current Transmitting: 11.6 mA, 16.6 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
